TECH PUBLICDatasheet (PDF)

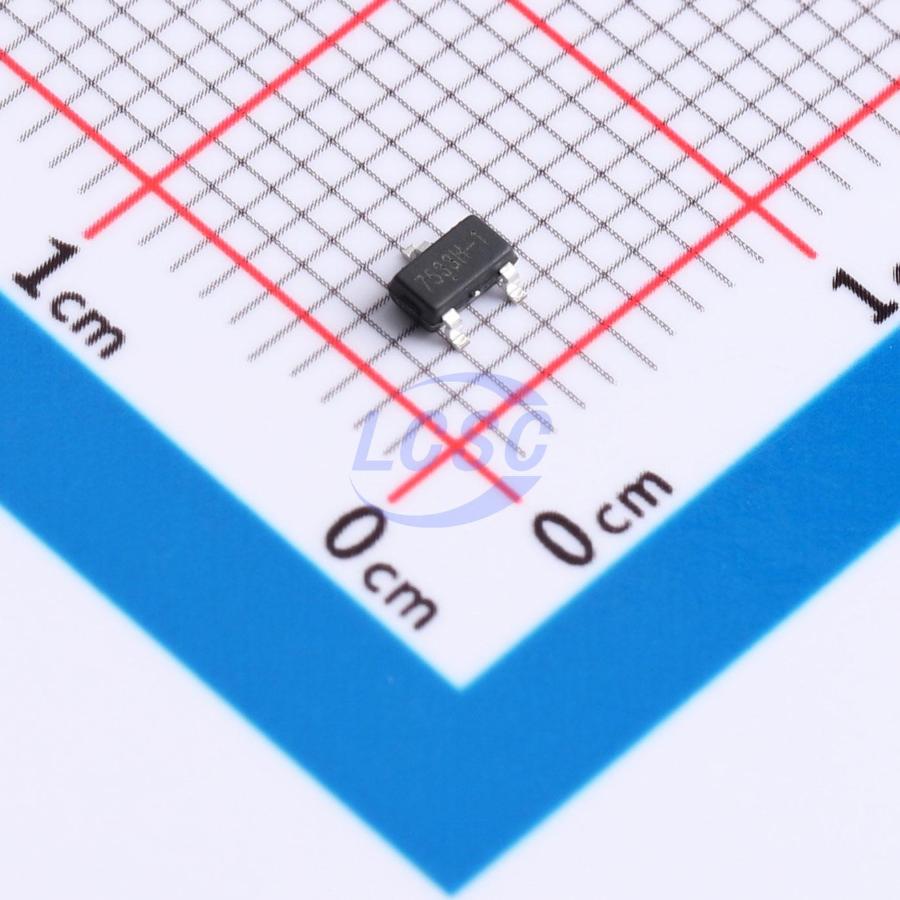

HT7533HS
3.3V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- HT7533HS
- Store part #
- C52817106
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C52817106
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.70 | ₹53.50 |
| 50+ | ₹8.43 | ₹421.50 |
| 150+ | ₹7.29 | ₹1,093.50 |
| 500+ | ₹6.43 | ₹3,215.00 |
| 3,000+ | ₹5.76 | ₹17,280.00 |
| 6,000+ | ₹5.41 | ₹32,460.00 |
5 × ₹10.70
₹53.50
excl. GST
₹63.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7533HS
₹53.50 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 45V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
The HT475 series are micro-power low-dropout voltage regulators available in multiple output voltage options. These devices feature extremely low quiescent current and provide thermal limiting protection through output short-circuit protection and internal thermal shutdown circuitry. With low input-to-output voltage differential and bias current specifications, they are widely used in power supply applications for various audio, video equipment, and communication devices.
Applications
- Handheld instruments
- Battery-powered consumer products
- Test and measurement equipment
- Industrial power supplies
Key features
- Input voltage up to 45V
- Output current up to 250mA
- Typical no-load current of 2.5μA
- Output accuracy ±2%
- Compact packages: SOT89-3 and SOT23-3L
