TDSEMICDatasheet (PDF)

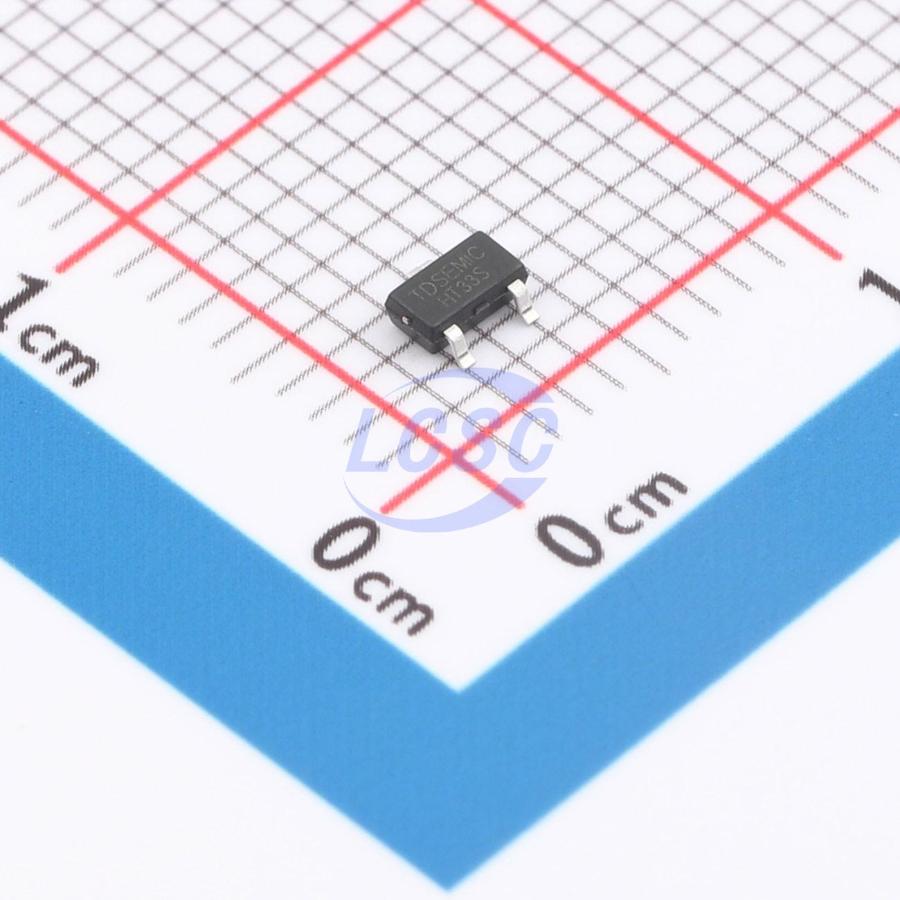

HT7533S-TD(55V)
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3
SOT-23-3ROHS CompliantActive
Low-dropout linear regulator with 250 mA output current, 55 V voltage withstand, and low quiescent current
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7533S-TD(55V)
- Store part #
- C49023493
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,550 in stock
#C49023493
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.49 | ₹104.90 |
| 100+ | ₹8.26 | ₹826.00 |
| 300+ | ₹7.14 | ₹2,142.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
| 6,000+ | ₹5.64 | ₹33,840.00 |
| 9,000+ | ₹5.29 | ₹47,610.00 |
10 × ₹10.49
₹104.90
excl. GST
₹123.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7533S-TD(55V)
₹104.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 55V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
HT7533S - TD (55V) is a low-dropout linear regulator utilizing CMOS technology. With a 55V breakdown voltage, output voltages of 3.3V and 5.0V, and a maximum output current of 250mA, it features low quiescent current consumption, output short-circuit protection, and output current derating at high temperatures to prevent system collapse. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Low temperature drift coefficient
- 55V voltage withstanding
- Typical quiescent current 2.0μA
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current derating above junction temperature 120℃
- ESD HBM exceeds 2500V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7133S-TD(55V)#C49023489TDSEMIC · SOT-23-3 | TDSEMIC | SOT-23-3 | 24,010 | ₹9.95 · 24,010 in stock | View |
