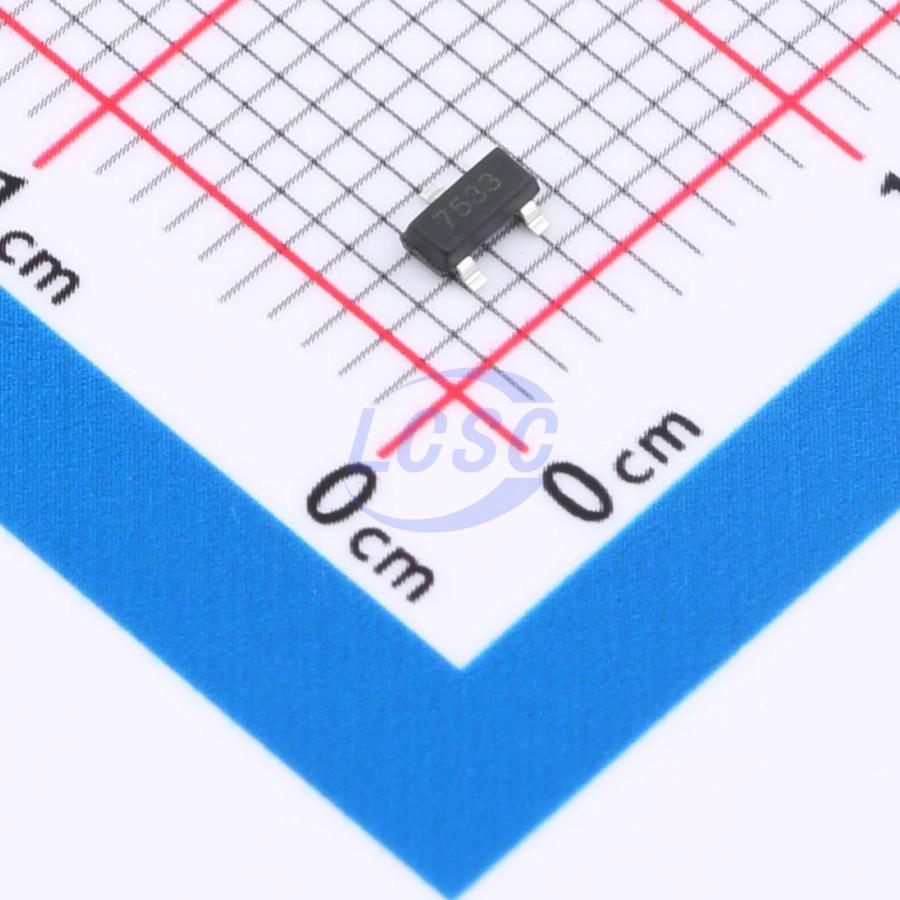

HT7533ST
Linear Voltage Regulator IC Fixed 150mA SOT-23-3
SOT-23-3RoHSActive
High Voltage Regulator
- Manufacturer
- GR
- Manufacturer part #
- HT7533ST
- Store part #
- C49191520
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,540 in stock
#C49191520
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.46 | ₹89.20 |
| 200+ | ₹3.52 | ₹704.00 |
| 600+ | ₹3.00 | ₹1,800.00 |
| 3,000+ | ₹2.69 | ₹8,070.00 |
| 9,000+ | ₹2.41 | ₹21,690.00 |
| 21,000+ | ₹2.26 | ₹47,460.00 |
20 × ₹4.46
₹89.20
excl. GST
₹105.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7533ST
₹89.20 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 200mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.096 g
Overview
The HT75xx series is a group of three-terminal, micropower, high-voltage regulators implemented in CMOS technology. They support input voltages up to 40V and offer multiple fixed output voltage options ranging from 3.0V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current. Although primarily designed as fixed-voltage regulators, these devices can also be used with external components to achieve adjustable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- High input voltage (up to 40V)
- Ultra-low quiescent current: 3.0uA (typical)
- Low dropout
- Output voltage accuracy: ±3% tolerance
- Package: SOT23, SOT89, TO92
