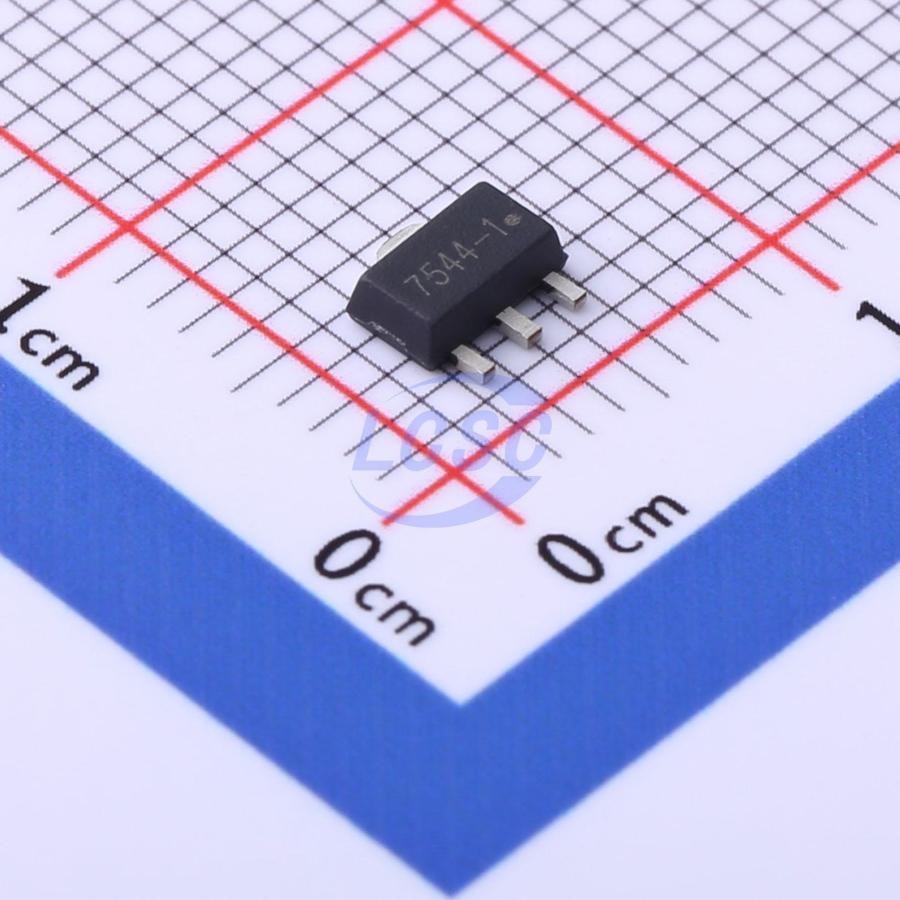

HT7544-1
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
SOT-89-3RoHSActive
LDO Linear Voltage Regulator
- Manufacturer
- GUOXIN JIAPIN SEMICONDUCTOR
- Manufacturer part #
- HT7544-1
- Store part #
- C2685039
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2685039
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.68 | ₹96.80 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.84 | ₹2,052.00 |
| 1,000+ | ₹5.60 | ₹5,600.00 |
| 5,000+ | ₹5.04 | ₹25,200.00 |
| 10,000+ | ₹4.75 | ₹47,500.00 |
| 20,000+ | ₹4.70 | ₹94,000.00 |
| 40,000+ | ₹4.66 | ₹1,86,400.00 |
10 × ₹9.68
₹96.80
excl. GST
₹114.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7544-1
₹96.80 for 10 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.732 g
Overview
The HT75XX series are high-voltage LDO regulators fabricated using CMOS technology, featuring low power consumption, a maximum input voltage of 18V, and an output voltage range of 2.0V to 5.0V. Key characteristics include high output voltage accuracy, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security surveillance equipment
Key features
- Low power consumption: ≤3μA
- Low dropout voltage: typical 0.1V
- Low temperature drift: typical 50ppm/°C
- High input voltage: up to 18V
- High-accuracy output voltage: ±3% tolerance
- Package: TO-92, SOT89-3, SOT23-3
