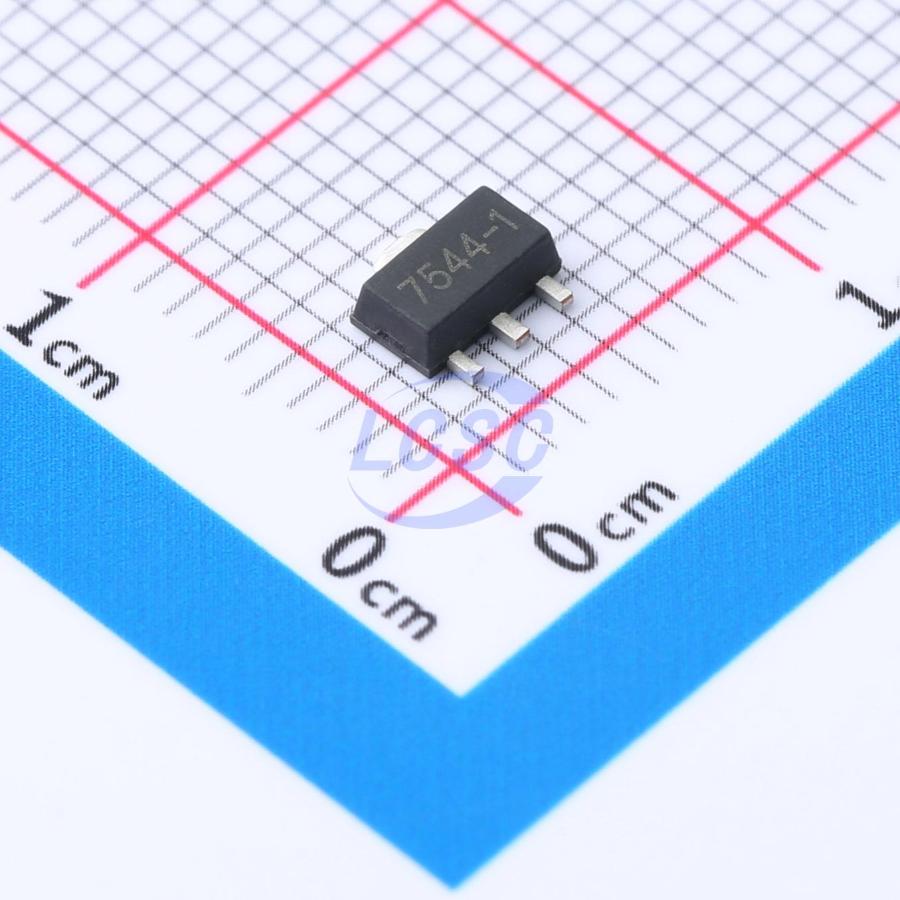

HT7544-1
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
SOT-89-3RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7544-1
- Store part #
- C5379121
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,050 in stock
#C5379121
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.17 | ₹71.70 |
| 100+ | ₹5.64 | ₹564.00 |
| 300+ | ₹4.86 | ₹1,458.00 |
| 1,000+ | ₹4.27 | ₹4,270.00 |
| 5,000+ | ₹3.81 | ₹19,050.00 |
| 10,000+ | ₹3.59 | ₹35,900.00 |
10 × ₹7.17
₹71.70
excl. GST
₹84.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7544-1
₹71.70 for 10 + GST
Specifications
- Output Voltage
- 4.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.14 g
Overview
HT75XX is a low dropout linear regulator fabricated using CMOS technology. With a maximum input voltage rating of 24V, it is available in several fixed output voltage options ranging from 2.8V to 9.0V. Featuring low quiescent current consumption, it is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Small temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7544-3-MS#C30197504MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 1,000 | ₹25.49 · 1,000 in stock | View |
 | HT7144-1#C6454428MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 920 | ₹6.43 · 920 in stock | View |
 | HT7544-2-MS#C30197492MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 175 | ₹14.45 · 175 in stock | View |
