HEERMICRDatasheet (PDF)

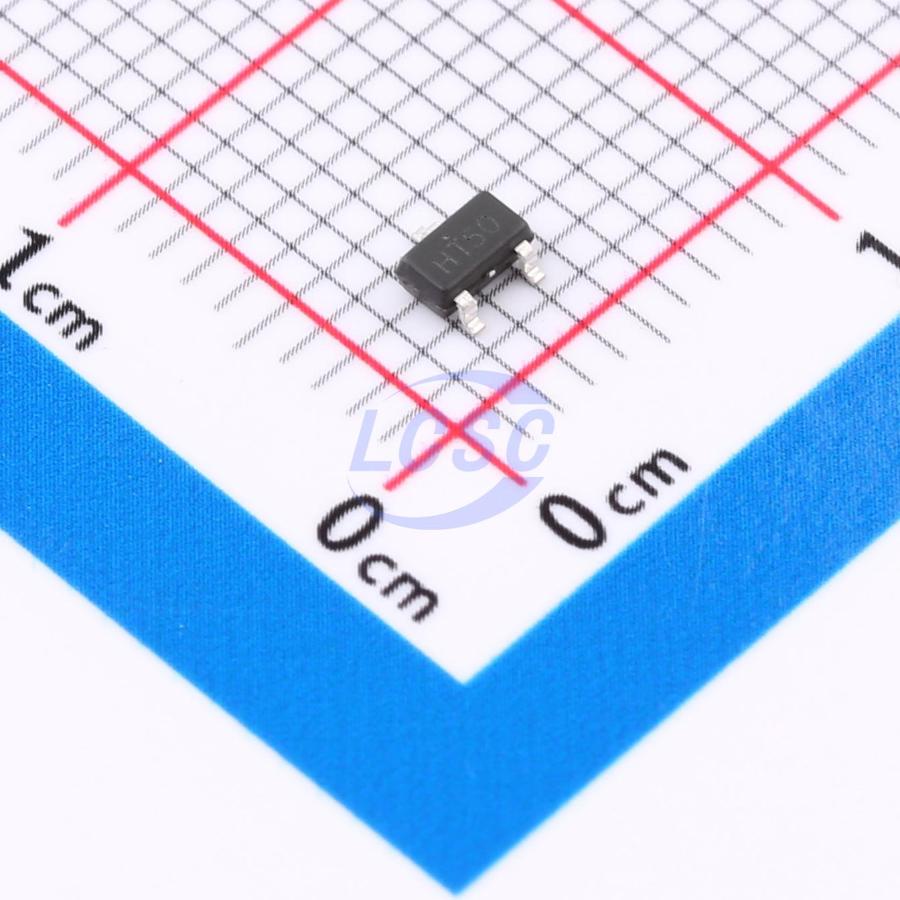

HT7550-1
5V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
IC REG LINEAR 5V 250mA SOT-23-3
- Manufacturer
- HEERMICR
- Manufacturer part #
- HT7550-1
- Store part #
- C49374777
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,720 in stock
#C49374777
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.98 | ₹59.80 |
| 100+ | ₹4.74 | ₹474.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 3,000+ | ₹3.64 | ₹10,920.00 |
| 6,000+ | ₹3.25 | ₹19,500.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹5.98
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7550-1
₹59.80 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 40V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
HT75xx-1 is a low dropout linear regulator based on CMOS technology, featuring a 40V maximum voltage rating, multiple fixed output voltage options ranging from 3.0V to 5.0V, and an output current capability of up to 250mA. The device offers ultra-low quiescent current consumption and integrates output short-circuit protection along with automatic output current reduction at elevated temperatures to prevent system failures. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption, typical quiescent current 2.0μA
- Low input-output voltage differential
- Low temperature drift coefficient
- 40V voltage rating
- Output voltage accuracy ±2%
- Output short-circuit protection
- Output overcurrent protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HE2240A50HMR#C5123363HEERMICR · SOT-23-3 | HEERMICR | SOT-23-3 | 2,205 | ₹11.83 · 2,205 in stock | View |
