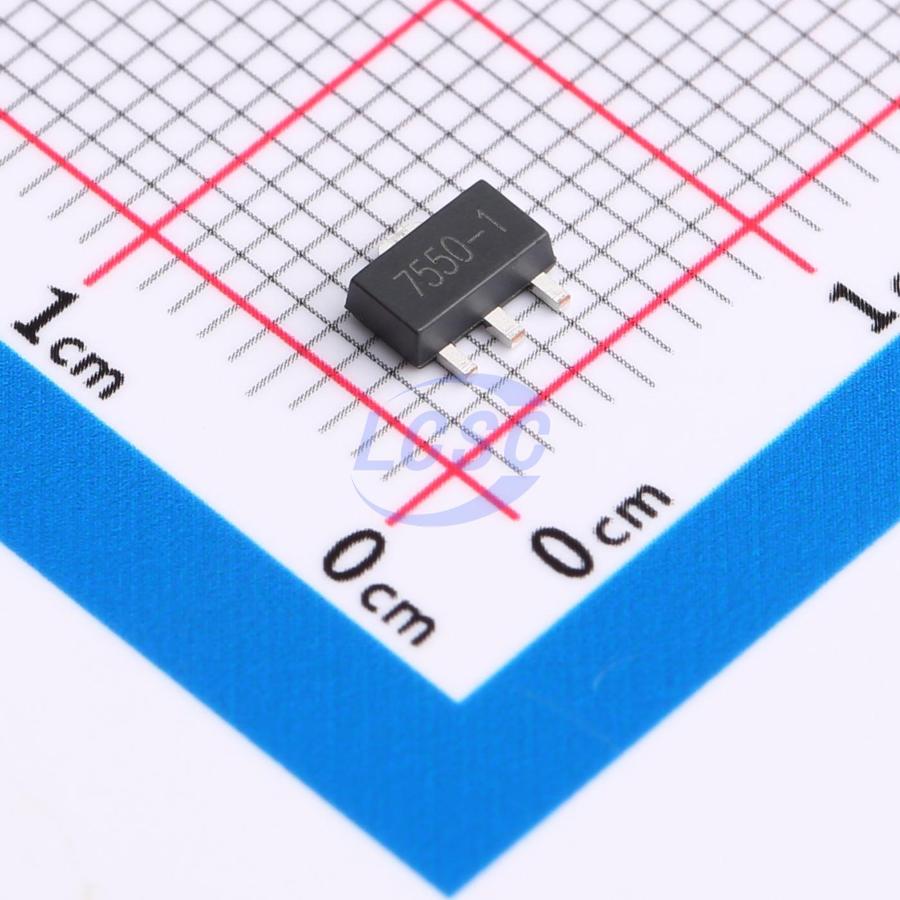

HT7550-1
Linear Voltage Regulator IC Positive Fixed 150mA SOT-89-3
SOT-89-3RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- HT7550-1
- Store part #
- C5379158
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C5379158
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.32 | ₹106.40 |
| 200+ | ₹4.29 | ₹858.00 |
| 1,000+ | ₹3.65 | ₹3,650.00 |
| 2,000+ | ₹3.25 | ₹6,500.00 |
| 10,000+ | ₹2.95 | ₹29,500.00 |
| 20,000+ | ₹2.79 | ₹55,800.00 |
20 × ₹5.32
₹106.40
excl. GST
₹125.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7550-1
₹106.40 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 24V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.148 g
Overview
HT75XX is a low dropout linear regulator fabricated using CMOS technology. With a maximum input voltage rating of 24V, it is available in several fixed output voltage options ranging from 2.8V to 9.0V. Featuring low quiescent current consumption, it is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input-output voltage differential
- Small temperature drift coefficient
- Maximum operating voltage up to 24V
- Quiescent current 1.5μA
- Output voltage accuracy: ±2%
- High output current: 100mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7550-2-MS#C30197493MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 425 | ₹14.51 · 425 in stock | View |
 | HT7350-3-MS#C30197515MSKSEMI · SOT-89-3 | MSKSEMI | SOT-89-3 | 740 | ₹24.65 · 740 in stock | View |
 | HT7350-2-MS#C30197520MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 910 | ₹24.65 · 910 in stock | View |
 | HT7150-1#C6454429MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 30 | ₹5.79 · 30 in stock | View |
 | HT7350-1-MS#C7434188MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 8,170 | ₹9.80 · 8,170 in stock | View |
