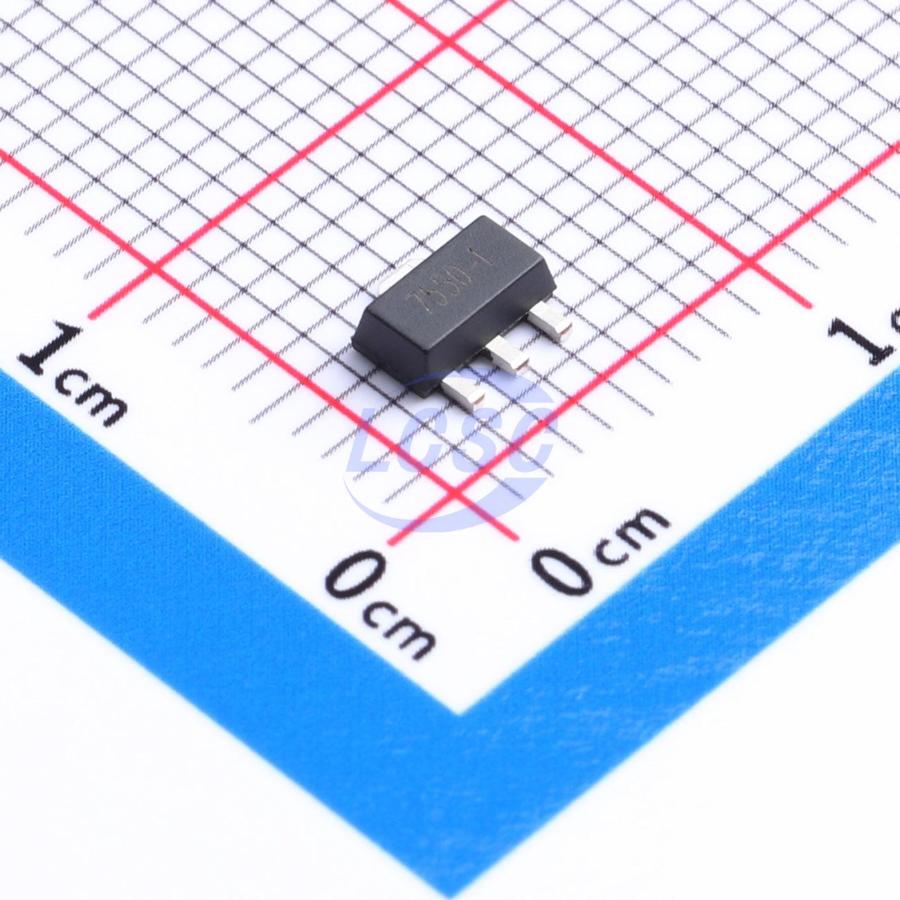

HT7550-1FR
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- HT7550-1FR
- Store part #
- C51889845
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C51889845
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.63 | ₹92.60 |
| 200+ | ₹3.61 | ₹722.00 |
| 1,000+ | ₹3.04 | ₹3,040.00 |
| 2,000+ | ₹2.70 | ₹5,400.00 |
| 10,000+ | ₹2.41 | ₹24,100.00 |
| 20,000+ | ₹2.25 | ₹45,000.00 |
20 × ₹4.63
₹92.60
excl. GST
₹109.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7550-1FR
₹92.60 for 20 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.144 g
Overview
The HT75XX series is a low-power, high-voltage CMOS LDO regulator with a maximum output current of 150mA. This series features an ultra-low quiescent current of 4μA while maintaining transient response capability to fast load transients. It also integrates thermal protection, short-circuit protection, and current limiting protection, with a maximum input voltage of 36V. The fixed output voltage range covers 1.5V to 9V, with support for high-accuracy custom voltages.
Applications
- Battery-powered devices
- Communication equipment
- Wearable devices
- Smart home
Key features
- Low quiescent current, typical 4uA
- Maximum output current: 150mA
- High input voltage up to 36V
- Low dropout: 600mV at 100mA output current
- Small temperature coefficient: <±100 ppm/℃
- Output voltage options: 1.5V, 1.8V, 2.7V, 3.0V, 3.3V, 3.6V, 4.4V, 5.0V, 9.0V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7150-1FR#C51889843GREENMICRO · SOT-89-3 | GREENMICRO | SOT-89-3 | 400 | ₹4.74 · 400 in stock | View |
