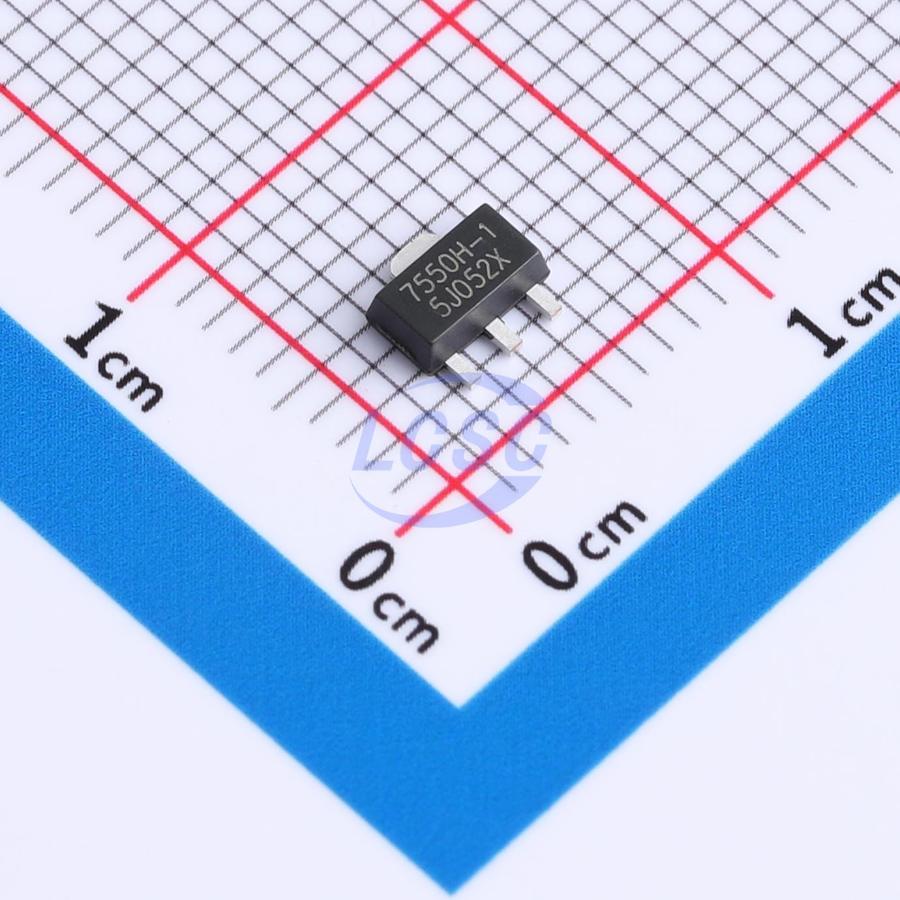

HT7550H
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- HT7550H
- Store part #
- C52817107
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C52817107
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.82 | ₹54.10 |
| 50+ | ₹8.53 | ₹426.50 |
| 150+ | ₹7.38 | ₹1,107.00 |
| 1,000+ | ₹6.52 | ₹6,520.00 |
| 2,000+ | ₹5.83 | ₹11,660.00 |
| 5,000+ | ₹5.49 | ₹27,450.00 |
5 × ₹10.82
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7550H
₹54.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 45V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.143 g
Overview
The HT475 series are micro-power low-dropout voltage regulators available in multiple output voltage options. These devices feature ultra-low quiescent current and provide thermal protection through output short-circuit protection and internal thermal shutdown circuitry. Owing to their low input-output voltage differential and bias current specifications, they are widely used as power supplies in various audio, video, and communications equipment.
Applications
- Handheld instruments
- Battery-powered consumer products
- Test and measurement equipment
- Industrial power supplies
Key features
- Input voltage up to 45V
- Output current up to 250mA
- Typical quiescent current of 2.5uA at no load
- ±2% output accuracy
- Compact packages: SOT89-3 and SOT23-3L
