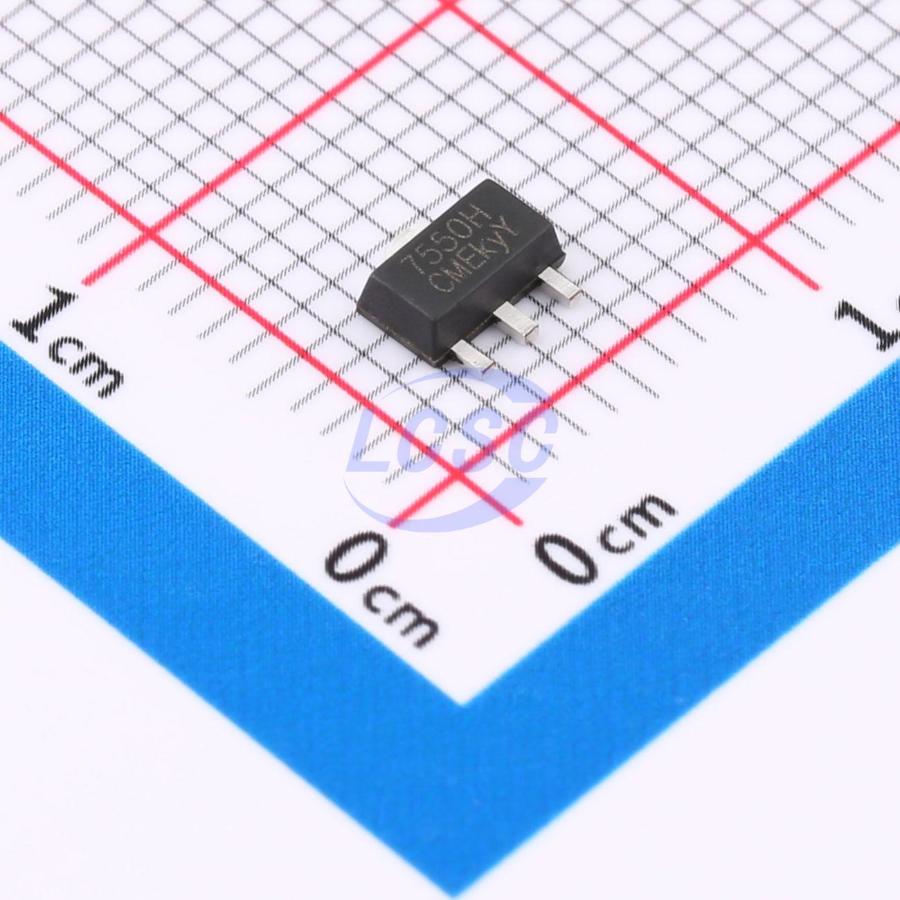

HT7550H-TD(55V)
Linear Voltage Regulator IC 250mA SOT-89
SOT-89ROHS CompliantActive
Low-dropout linear regulator with 250 mA output current, 55 V voltage withstand, and low quiescent current
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HT7550H-TD(55V)
- Store part #
- C49023494
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,660 in stock
#C49023494
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.19 | ₹55.95 |
| 50+ | ₹8.78 | ₹439.00 |
| 150+ | ₹7.58 | ₹1,137.00 |
| 1,000+ | ₹6.67 | ₹6,670.00 |
| 2,000+ | ₹5.95 | ₹11,900.00 |
| 5,000+ | ₹5.58 | ₹27,900.00 |
5 × ₹11.19
₹55.95
excl. GST
₹66.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT7550H-TD(55V)
₹55.95 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 55V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.146 g
Overview
HT7550H - TD (55V) is a low-dropout linear regulator based on CMOS technology. It features a 55V voltage rating, output voltages of 3.3V and 5.0V, up to 250mA output current, low quiescent current consumption, output short-circuit protection, and output current derating at high temperatures to prevent system failure. It is widely used in power supply applications for audio, video, and communication equipment.
Applications
- Various power supply equipment
- Communication equipment
- Audio and video equipment
Key features
- Low power consumption
- Low input/output voltage differential
- Low temperature drift coefficient
- 55V withstand voltage
- Typical quiescent current 2.0μA
- Output voltage accuracy: ±1%
- Output short-circuit protection
- Output current reduction when junction temperature exceeds 120°C
- ESD HBM exceeds 2500V
