HOLTEKDatasheet (PDF)

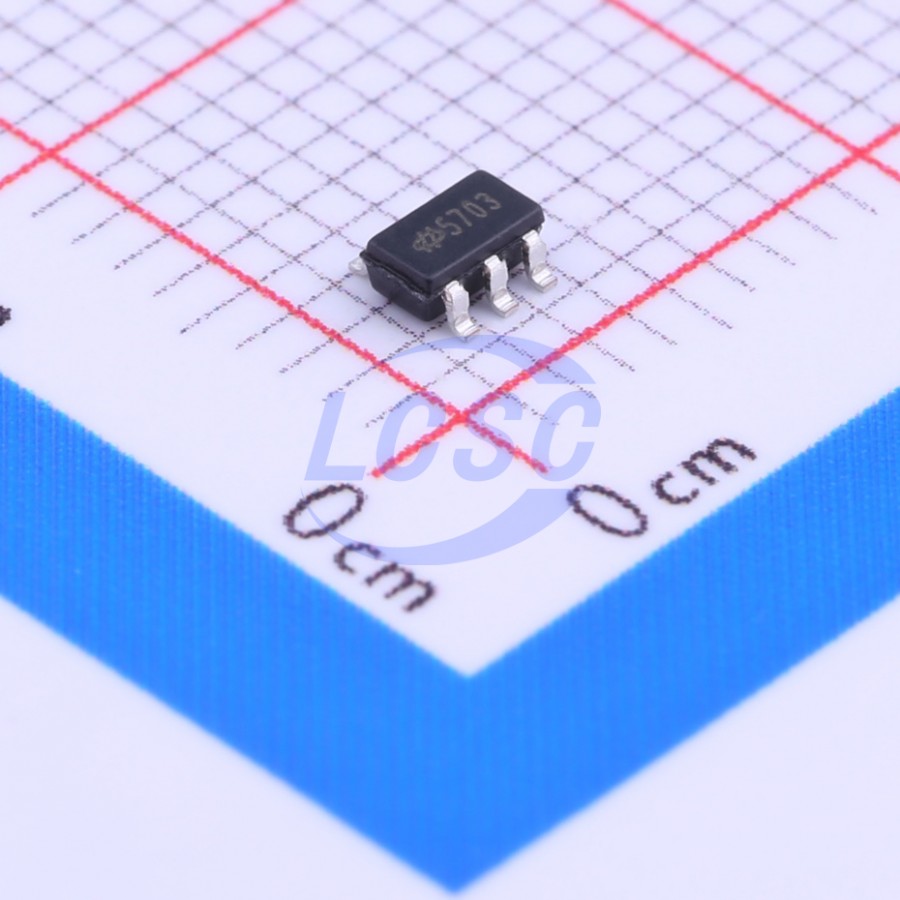

HT7570-3
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
SOT-23-5RoHSActive
100mA low-power consumption LDO
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT7570-3
- Store part #
- C259665
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,975 in stock
#C259665
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.50 | ₹122.50 |
| 50+ | ₹19.37 | ₹968.50 |
| 150+ | ₹17.17 | ₹2,575.50 |
| 500+ | ₹14.42 | ₹7,210.00 |
| 3,000+ | ₹13.20 | ₹39,600.00 |
| 6,000+ | ₹12.48 | ₹74,880.00 |
5 × ₹24.50
₹122.50
excl. GST
₹144.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HT7570-3
₹122.50 for 5 + GST
Specifications
- Output Voltage
- 7V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The HT75xx-3 series is a group of three-terminal low-power high-voltage regulators implemented in CMOS technology. Output current is 100mA with an allowable input voltage up to 30V. Several fixed output voltage options are available, ranging from 2.1V to 12.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics. Although primarily designed as fixed voltage regulators, these ICs can be combined with external components to achieve variable voltage and current outputs.
Applications
- Battery-powered devices
- Communication equipment
- Audio/video devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- High input voltage (up to 30V)
- Quiescent current: 1μA
- High current output: 100mA
- Output voltage accuracy: ±2%
- Package types: 3-pin SOT89, 5-pin SOT23
