HTCSEMIDatasheet (PDF)

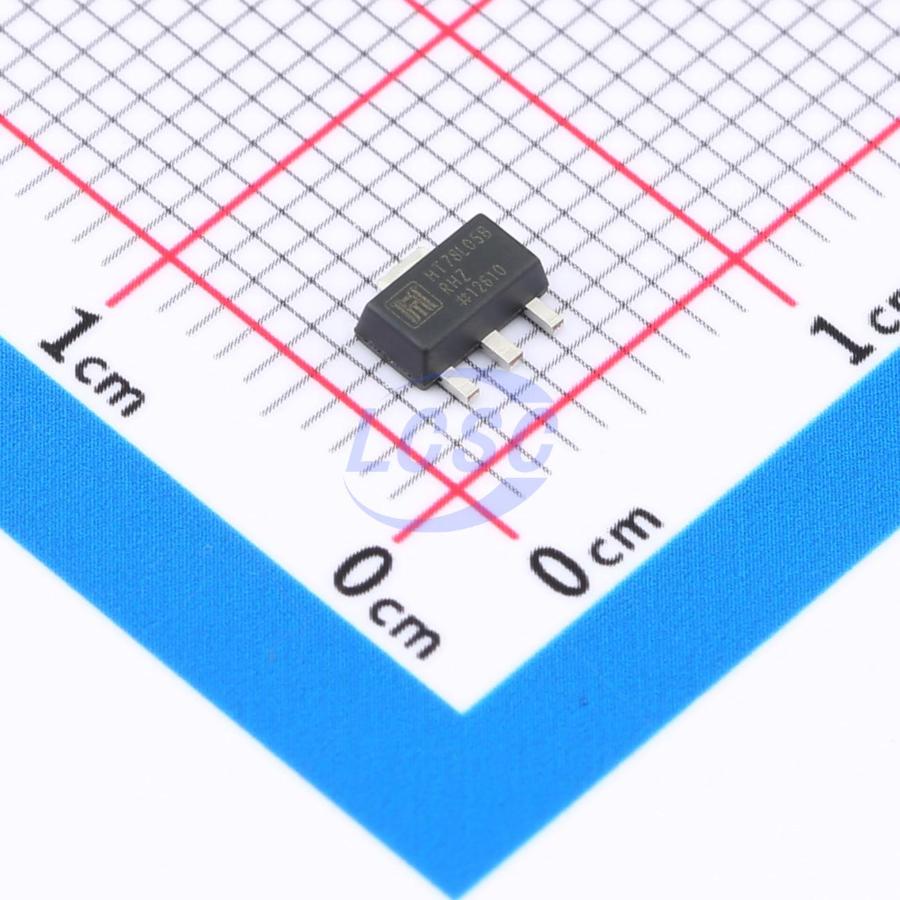

HT78L05BRHZ
5V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
IC REG LINEAR 5V 100mA SOT-89-3
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT78L05BRHZ
- Store part #
- C49253835
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,825 in stock
#C49253835
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.89 | ₹54.45 |
| 50+ | ₹8.61 | ₹430.50 |
| 150+ | ₹7.47 | ₹1,120.50 |
| 1,000+ | ₹6.62 | ₹6,620.00 |
| 2,000+ | ₹5.93 | ₹11,860.00 |
| 5,000+ | ₹5.58 | ₹27,900.00 |
5 × ₹10.89
₹54.45
excl. GST
₹64.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT78L05BRHZ
₹54.45 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 300uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
The HT78L05 is a three-terminal positive voltage regulator providing a fixed 5V output, suitable for a wide range of applications. As an alternative to zener diode-resistor combinations, it typically improves effective output impedance by two orders of magnitude while reducing quiescent current. The device is available in plastic TO-92, SOP8e-3, and SOP8 packages. With an adequate heat sink, the regulator can deliver 100mA output current. The built-in current limiting function restricts peak output current to a safe level.
Applications
- Battery chargers
- Portable instruments
- LED lighting
- Low-power supplies
Key features
- Input voltage up to 30V
- Output voltage tolerance ±5% over full temperature range
- 100mA output current
- Output transistor safe operating area protection
- Internal thermal overload protection
- Internal short-circuit current limiting
- Available in TO-92, SOT-893, XDFN4, SOP8 slim packages
