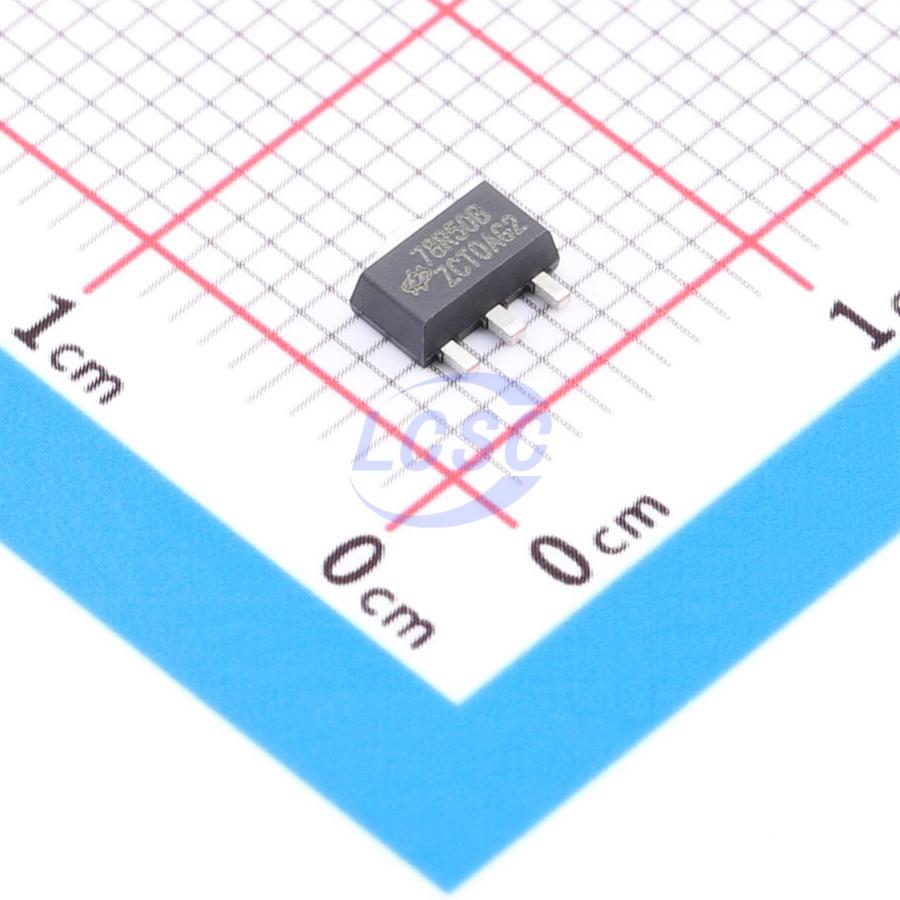

HT78R50B
SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
- Manufacturer
- HOLTEK
- Manufacturer part #
- HT78R50B
- Store part #
- C54973748
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,735 in stock
#C54973748
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.66 | ₹83.30 |
| 50+ | ₹13.26 | ₹663.00 |
| 150+ | ₹11.56 | ₹1,734.00 |
| 1,000+ | ₹10.28 | ₹10,280.00 |
| 2,000+ | ₹9.26 | ₹18,520.00 |
| 5,000+ | ₹8.76 | ₹43,800.00 |
5 × ₹16.66
₹83.30
excl. GST
₹98.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HT78R50B
₹83.30 for 5 + GST
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.192 g
Overview
The HT78Rxx series positive linear regulators feature low quiescent current and low dropout characteristics, making them suitable for battery-powered applications. Available in space-saving packages, the series delivers a continuous output current of 500mA. Multiple fixed output voltage options are provided, with voltage and current adjustment achievable via external components. The series integrates thermal shutdown and current limiting protection to handle demanding operating conditions.
Applications
- Portable electronics
- Wireless devices
- Cordless phones
- PC peripherals
- Battery-powered devices
- Electronic scales
Key features
- Fixed output voltages: 1.5V, 3.0V, 3.3V, 3.5V, 5.0V
- High accuracy: ±2%
- Low dropout: 60mV (typical), VOUT = 5.0V @ 500mA
- Maximum input voltage: 20V
- Guaranteed output current: 500mA
- Low quiescent current: 3μA (typical)
- Current limiting
- Thermal shutdown
- Package types: 3-pin SOT89 and 5-pin SOT23
