HTCSEMIDatasheet (PDF)

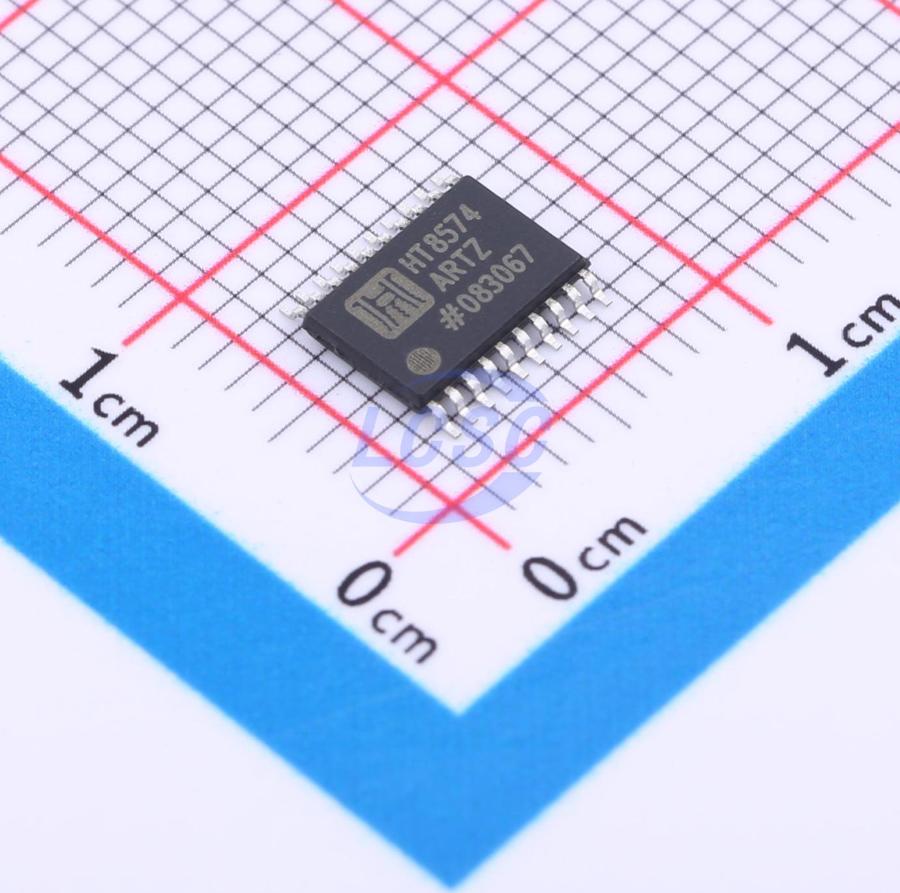

HT8574ARTZ
8 I2C SSOP-20-4.4mm I/O Expanders
SSOP-20-4.4mmRoHSActive
Remote 8-bit I/O expander for I2C-bus
- Manufacturer
- HTCSEMI
- Manufacturer part #
- HT8574ARTZ
- Store part #
- C2895056
- Package / case
- SSOP-20-4.4mm
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,142 in stock
#C2895056
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.81 | ₹105.81 |
| 10+ | ₹85.21 | ₹852.10 |
| 30+ | ₹75.03 | ₹2,250.90 |
| 100+ | ₹64.62 | ₹6,462.00 |
| 500+ | ₹58.54 | ₹29,270.00 |
| 1,000+ | ₹55.51 | ₹55,510.00 |
1 × ₹105.81
₹105.81
excl. GST
₹124.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HT8574ARTZ
₹105.81 for 1 + GST
Specifications
- Interrupt Output
- Interrupt Output
- Operating Temperature
- -40℃~+85℃
- Number of I/O
- 8
- Features
- Built-in LED driver;Cascade and address expansion
- Voltage - Supply
- 2.5V~6V
- Quiescent Supply Current
- 10uA
- Number of Supporting Devices
- 16
- Current - Output High(IOH)
- 300uA
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The HT8574B is a silicon CMOS circuit. It provides general purpose remote I/O expansion for most microcontroller families via the two- line bidirectional bus (I²C - bus).
Key features
- Operating supply voltage 2.5 to 6V
- Low standby current consumption of 10 μA maximum
- I²C -bus to parallel port expander
- Open-drain interrupt output
- 8-bit remote I/O port for the I²C -bus
- Compatible with most microcontrollers
- Latched outputs with high current drive capability for directly driving LEDs
- Address by 3 hardware address pins for use of up to 8 devices (up to 16 with HT8574A)
- DIP16, or space-saving SO16 or SSOP20 packages
