HGSEMI

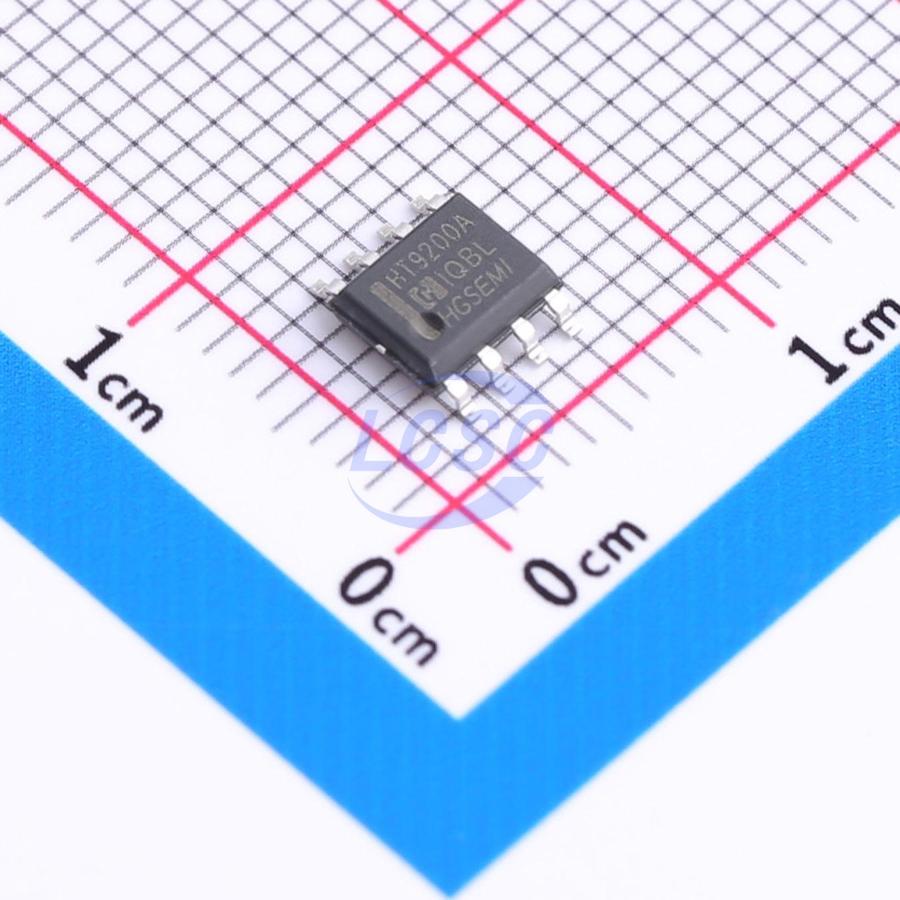

HT9200AM/TR

Serial SOP-8 Audio Special Purpose

SOP-8RoHSActive

Dual Tone Multi-Frequency Signal Generator

Manufacturer: HGSEMI
Manufacturer part #: HT9200AM/TR
Store part #: C30170085
Package / case: SOP-8
Category: Audio Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,595 in stock

#C30170085

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
5+	₹37.77	₹188.85
50+	₹29.66	₹1,483.00
150+	₹26.18	₹3,927.00
500+	₹21.84	₹10,920.00
2,500+	₹19.91	₹49,775.00
5,000+	₹18.76	₹93,800.00

Quantity (min 5, multiples of 5)

5 × ₹37.77

₹188.85

excl. GST

₹222.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT9200AM/TR

₹188.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -20℃~+75℃
Interface: Serial
Voltage - Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.077 g

Overview

HT9200A/B is a DTMF tone generator with ΔμC interface. It can be controlled by a μC to generate 16 dual-tone signals and 8 single-tone signals, output from the DTMF pin. The HT9200A operates in serial mode, while the HT9200B supports selectable serial or parallel operating mode. This IC is suitable for a wide range of applications, including security systems, home automation, remote control over telephone lines, and communication systems.
