HGSEMI

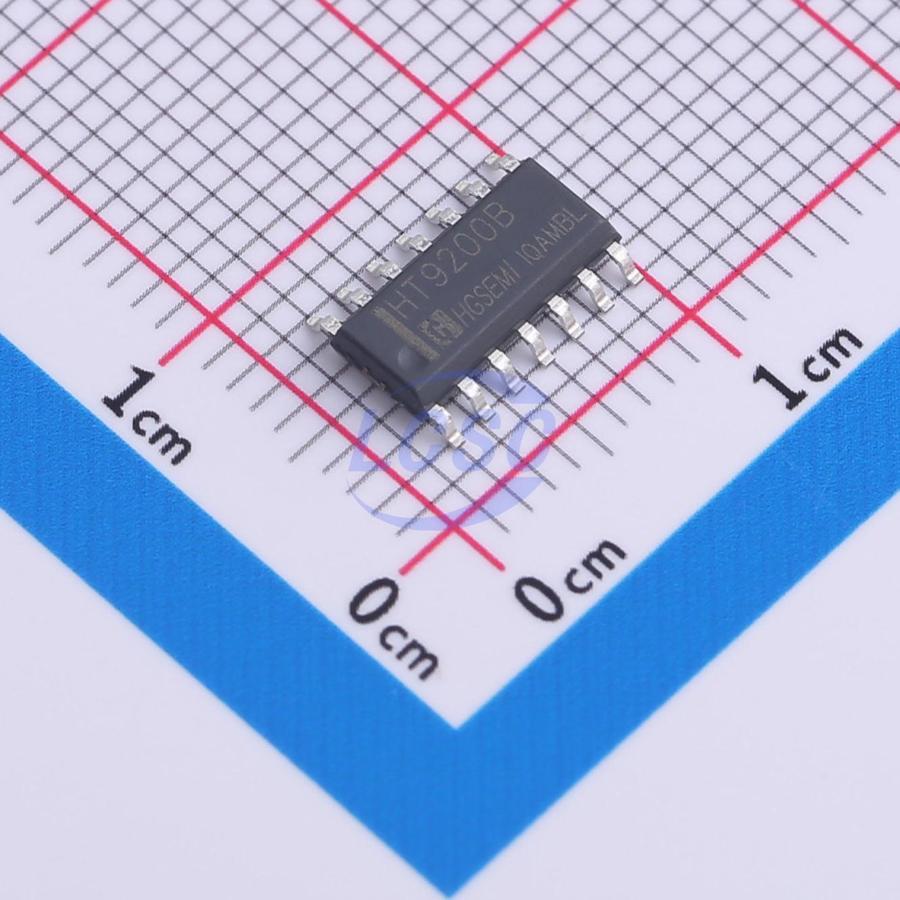

HT9200BM/TR

SOP-14 Audio Special Purpose

SOP-14RoHSActive

Dual Tone Multi-Frequency Signal Generator

Manufacturer: HGSEMI
Manufacturer part #: HT9200BM/TR
Store part #: C30170086
Package / case: SOP-14
Category: Audio Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,923 in stock

#C30170086

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹46.36	₹46.36
10+	₹40.56	₹405.60
30+	₹38.00	₹1,140.00
100+	₹34.77	₹3,477.00
500+	₹33.49	₹16,745.00
1,000+	₹32.63	₹32,630.00

Quantity (min 1)

1 × ₹46.36

₹46.36

excl. GST

₹54.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HT9200BM/TR

₹46.36 for 1 + GST

Specifications

Operating Temperature: -20℃~+75℃
Interface: Serial;Parallel
Voltage - Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.293 g

Overview

HT9200A/B is a DTMF tone generator with ΔμC interface. It can be controlled by a μC to generate 16 dual-tone signals and 8 single-tone signals, output from the DTMF pin. The HT9200A operates in serial mode, while the HT9200B supports selectable serial or parallel operating mode. This IC is suitable for a wide range of applications, including security systems, home automation, remote control over telephone lines, and communication systems.
