HITENX

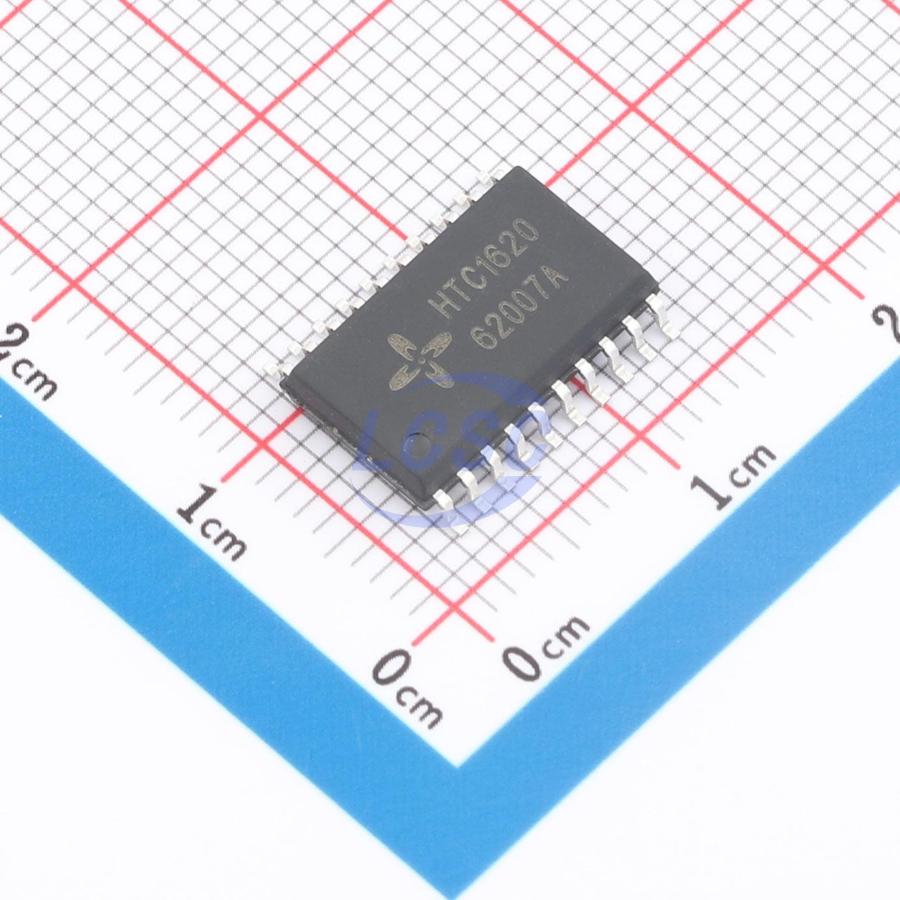

HTC1620

-500mV~7V 1MHz 3-Wire Serial Interface 50mA 200mA SOP-20 Display Drivers

SOP-20RoHSActive

Manufacturer: HITENX
Manufacturer part #: HTC1620
Store part #: C54565477
Package / case: SOP-20
Category: Display Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,844 in stock

#C54565477

Stock & price checked 38 h ago

Quantity	Unit price	Pack price
6+	₹19.32	₹115.92
60+	₹15.37	₹922.20
180+	₹13.39	₹2,410.20
612+	₹11.92	₹7,295.04
2,880+	₹10.73	₹30,902.40
5,760+	₹10.13	₹58,348.80

Quantity (min 6, multiples of 6)

6 × ₹19.32

₹115.92

excl. GST

₹136.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 36 per tube

HTC1620

₹115.92 for 6 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: -500mV~7V
Configuration: 8 Segment x 6 Digit;10 Segment x 4 Digit
Operating Temperature: -40℃~+80℃
Clock Frequency: 1MHz
Pd - Power Dissipation: 400mW
Interface: 3-Wire Serial Interface
Features: Built-in display RAM;PWM dimming
Segment Drive Current: 50mA
Digit Drive Current: 200mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 36 / Tube
Sold per: Piece
Minimum order: 6 (multiples of 6)
Unit weight: 1.346 g

Overview

HTC1620 is a 3-wire serial interface, common-cathode LED driver and controller IC supporting either 8-segment 6-digit or 10-segment 4-digit configurations. It integrates an MCU digital interface, data latches, RC oscillator, and LED driver circuits, making it well-suited for a wide range of LED panel applications such as microwave ovens, induction cookers, water heaters, and other home appliances.
