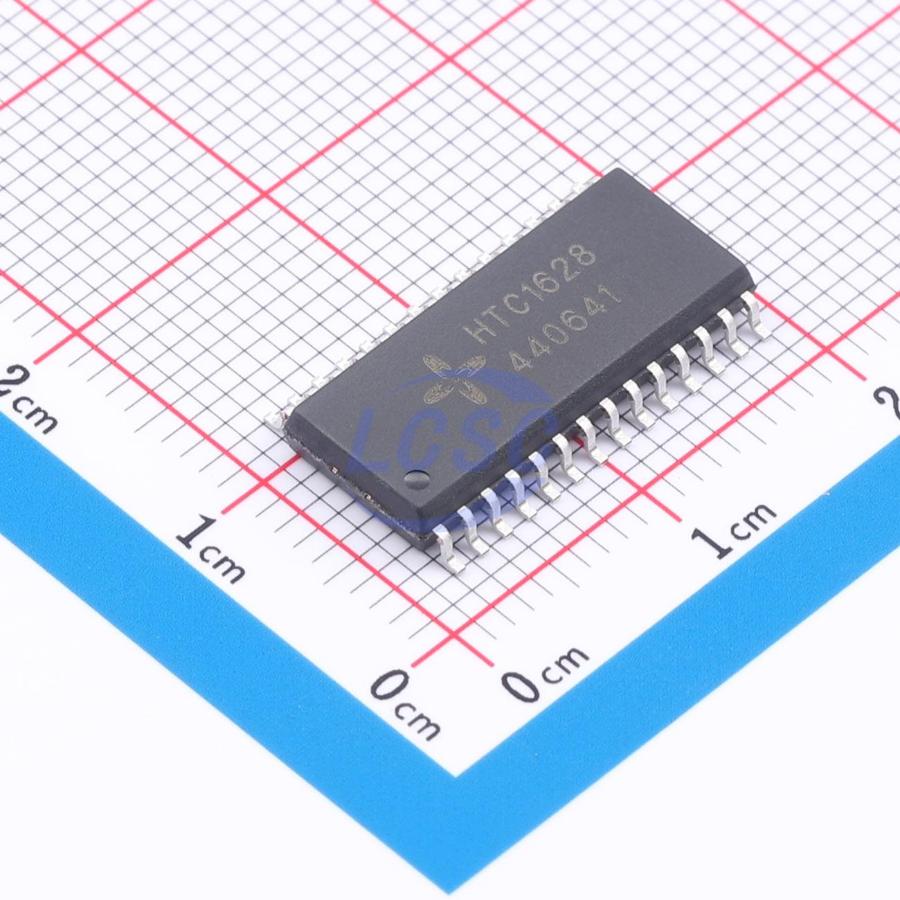

HITENX

HTC1628

2.4V~5.5V 1MHz 3-Wire Serial Interface 60mA 200mA SOP-28 Display Drivers

SOP-28RoHSActive

Manufacturer: HITENX
Manufacturer part #: HTC1628
Store part #: C54565473
Package / case: SOP-28
Category: Display Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,965 in stock

#C54565473

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.56	₹82.80
50+	₹13.18	₹659.00
150+	₹11.48	₹1,722.00
500+	₹10.21	₹5,105.00
2,000+	₹9.19	₹18,380.00
4,000+	₹8.69	₹34,760.00

Quantity (min 5, multiples of 5)

5 × ₹16.56

₹82.80

excl. GST

₹97.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

HTC1628

₹82.80 for 5 + GST

Specifications

Voltage - Supply: 2.4V~5.5V
Configuration: 10 Segment x 7 Digit;13 Segment x 4 Digit
Operating Temperature: -40℃~+80℃
Clock Frequency: 1MHz
Pd - Power Dissipation: 400mW
Interface: 3-Wire Serial Interface
Features: PWM dimming;Internal reset function;BCD input latch function
Segment Drive Current: 60mA
Digit Drive Current: 200mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

HTC1628 is a dedicated LED driver control circuit with a keyboard scan interface, integrating an MCU digital interface, data latches, and keyboard scan circuitry. This product is primarily designed for digit tube or LED display applications in home appliances (smart water heaters, microwave ovens, washing machines, air conditioners, induction cookers), set-top boxes, electronic scales, smart electricity meters, and similar devices.

Applications

Home appliances (smart water heaters, microwave ovens, washing machines, air conditioners, induction cookers), set-top boxes, electronic scales, smart electricity meters, and other digital tube or LED display devices
