HITENXDatasheet (PDF)

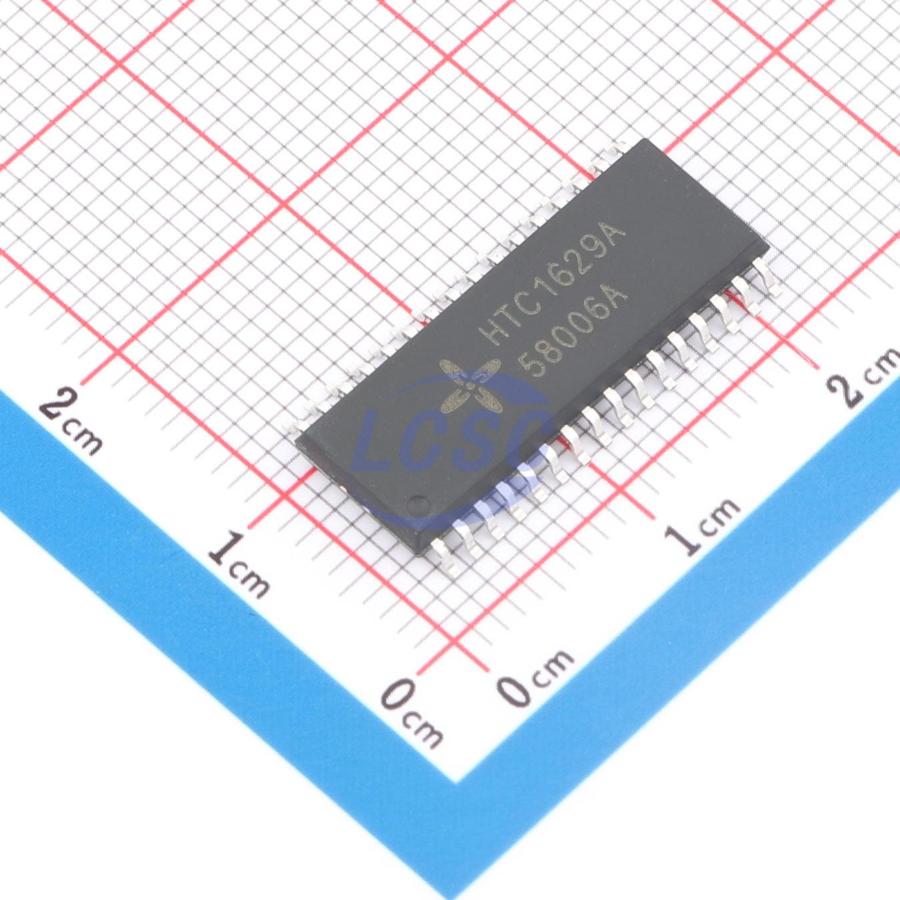

HTC1629A
-500mV~7V 1MHz 3-Wire Serial Interface 50mA 180mA SOP-32 Display Drivers
SOP-32RoHSActive
- Manufacturer
- HITENX
- Manufacturer part #
- HTC1629A
- Store part #
- C54565471
- Package / case
- SOP-32
- Category
- Display Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,582 in stock
#C54565471
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 7+ | ₹28.88 | ₹202.16 |
| 70+ | ₹22.85 | ₹1,599.50 |
| 210+ | ₹20.27 | ₹4,256.70 |
| 693+ | ₹17.04 | ₹11,808.72 |
| 3,360+ | ₹15.60 | ₹52,416.00 |
| 6,720+ | ₹14.74 | ₹99,052.80 |
7 × ₹28.88
₹202.16
excl. GST
₹238.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 21 per tube
HTC1629A
₹202.16 for 7 + GST
Specifications
- Voltage - Supply
- -500mV~7V
- Configuration
- 16 Segment x 8 Digit
- Operating Temperature
- -40℃~+85℃
- Clock Frequency
- 1MHz
- Interface
- 3-Wire Serial Interface
- Features
- Built-in display RAM;PWM dimming;Internal reset function
- Quiescent Current (Iq)
- 150uA
- Segment Drive Current
- 50mA
- Digit Drive Current
- 180mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 21 / Tube
- Sold per
- Piece
- Minimum order
- 7 (multiples of 7)
- Unit weight
- 2.105 g
Overview
HTC1629A is a 3-wire serial interface, common-cathode, 16-segment, 8-digit LED driver control IC. It integrates an MCU digital interface, data latches, and LED driver circuits, making it widely applicable to various LED panel applications.
Applications
- LED display panel applications, such as microwave ovens, induction cookers, water heaters, and other home appliances.
Key features
- Built-in display RAM
- Display mode: 16-segment 8-digit
- Software-adjustable display brightness
- Built-in power-on reset circuit
- 3-wire serial interface (CLK, STB, DIN)
- Built-in RC oscillator
- Package: SOP32, LQFP32
