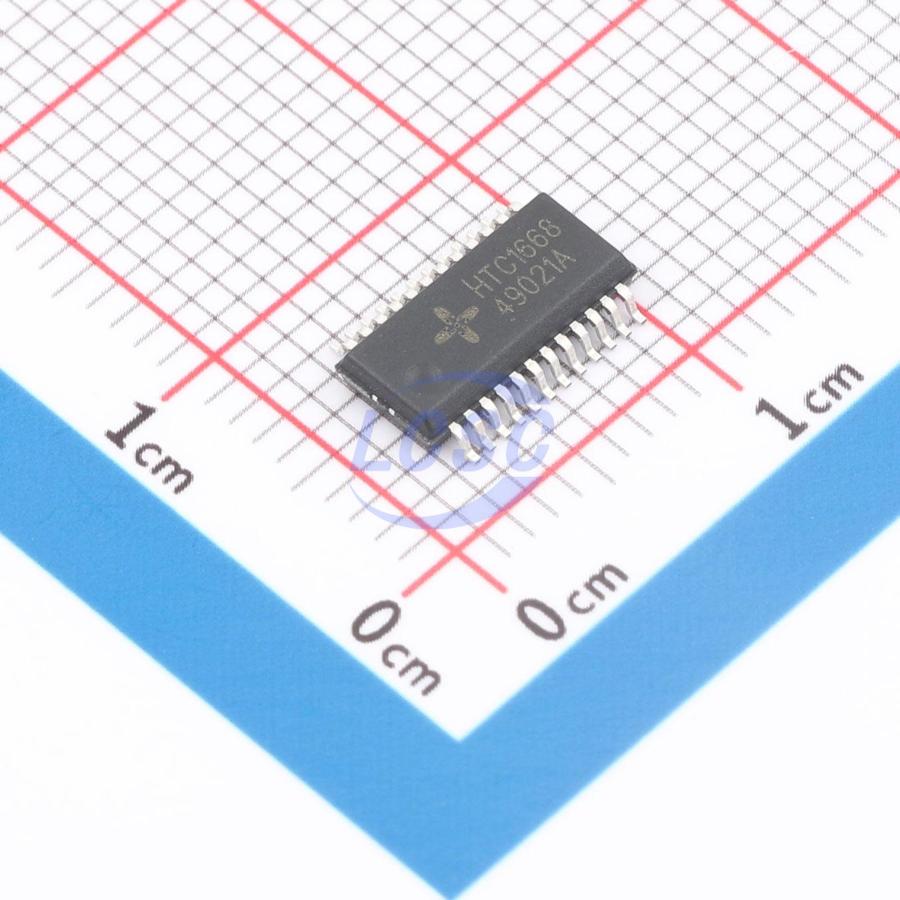

HITENX

HTC1668

2.4V~5.5V 1MHz 3-Wire Serial Interface 60mA 200mA SSOP-24 Display Drivers

SSOP-24RoHSActive

Manufacturer: HITENX
Manufacturer part #: HTC1668
Store part #: C54565478
Package / case: SSOP-24
Category: Display Drivers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,995 in stock

#C54565478

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹12.05	₹60.25
50+	₹9.58	₹479.00
120+	₹8.35	₹1,002.00
480+	₹7.44	₹3,571.20
2,520+	₹6.69	₹16,858.80
4,980+	₹6.32	₹31,473.60

Quantity (min 5, multiples of 5)

5 × ₹12.05

₹60.25

excl. GST

₹71.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 60 per tube

HTC1668

₹60.25 for 5 + GST

Specifications

Voltage - Supply: 2.4V~5.5V
Configuration: 10 Segment x 7 Digit;13 Segment x 4 Digit
Operating Temperature: -40℃~+80℃
Clock Frequency: 1MHz
Pd - Power Dissipation: 400mW
Interface: 3-Wire Serial Interface
Features: Built-in display RAM;PWM dimming
Segment Drive Current: 60mA
Digit Drive Current: 200mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 60 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.32 g

Overview

HTC1668 is a 3-wire serial interface, common-cathode LED driver and controller IC supporting 10-segment 7-digit or 13-segment 4-digit display with 10×2-bit keyboard scanning. It integrates a 3-wire serial communication interface and RC oscillator, featuring 8-level brightness adjustment. Widely applicable to various LED panel applications such as microwave ovens, induction cookers, water heaters, and other home appliances.

Applications

Various LED panel applications, such as microwave ovens, induction cookers, water heaters, and other home appliances

Key features

Built-in display RAM
Software-adjustable display mode
Software-adjustable display brightness
10×2 scan key matrix
3-wire serial interface (CLK, STB, DIO)
Built-in RC oscillator
Package options: SOP24/SSOP24 (0.635mm), QFN24 (3×3×0.75mm) (L=0.3mm), QFN24 (4×4×0.75mm) (L=0.3mm)
