TDSEMICDatasheet (PDF)

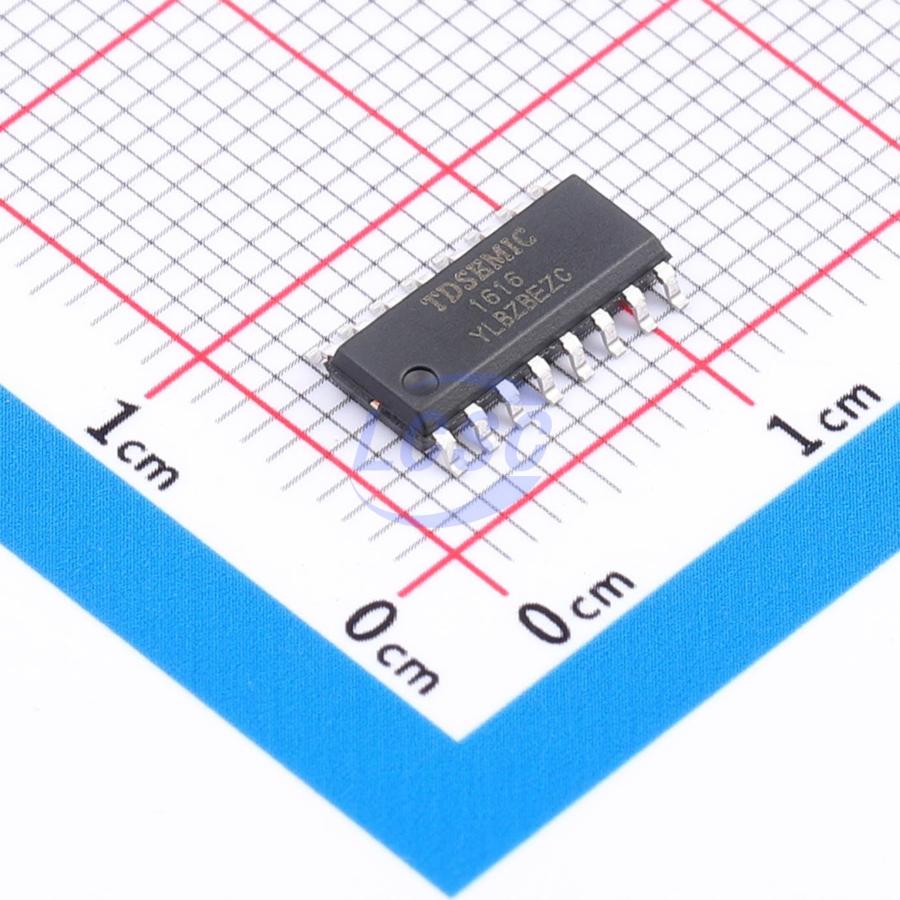

HTM1616DR-TD
2.8V~5.5V 1MHz 3-Wire Serial Interface 20mA 80mA SOP-16 Display Drivers
SOP-16RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- HTM1616DR-TD
- Store part #
- C53463562
- Package / case
- SOP-16
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,820 in stock
#C53463562
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.58 | ₹87.90 |
| 50+ | ₹13.94 | ₹697.00 |
| 150+ | ₹12.12 | ₹1,818.00 |
| 500+ | ₹10.76 | ₹5,380.00 |
| 2,500+ | ₹9.66 | ₹24,150.00 |
| 4,000+ | ₹9.12 | ₹36,480.00 |
5 × ₹17.58
₹87.90
excl. GST
₹103.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HTM1616DR-TD
₹87.90 for 5 + GST
Specifications
- Voltage - Supply
- 2.8V~5.5V
- Configuration
- 7 Segment × 4 Digit
- Operating Temperature
- -40℃~+85℃
- Clock Frequency
- 1MHz
- Interface
- 3-Wire Serial Interface
- Features
- PWM dimming;Built-in display RAM
- Quiescent Current (Iq)
- 200uA
- Segment Drive Current
- 20mA
- Digit Drive Current
- 80mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Overview
The HTM16 series are LED display control driver ICs, integrating MCU digital interface, data latch, LED driver, and keyboard scanning circuits (on select variants) on-chip. They serve as highly reliable MCU peripheral LED driver circuits. Serial data is input to the chip via a 3-wire serial interface, and multiple package options are available for user selection.
Applications
- Products using LED display panels, such as smart water heaters, microwave ovens, washing machines, air conditioners, and smart electricity meters.
Key features
- Operating voltage: 2.8V~5.5V
- CMOS process
- Multiple display modes: configurable segment and digit count (4~7 digits, 5~13 segments)
- Key scan: up to 10×2 matrix
- 8-level brightness adjustment circuit
- 3-wire serial interface
- Built-in RC oscillator
