HEXINDatasheet (PDF)

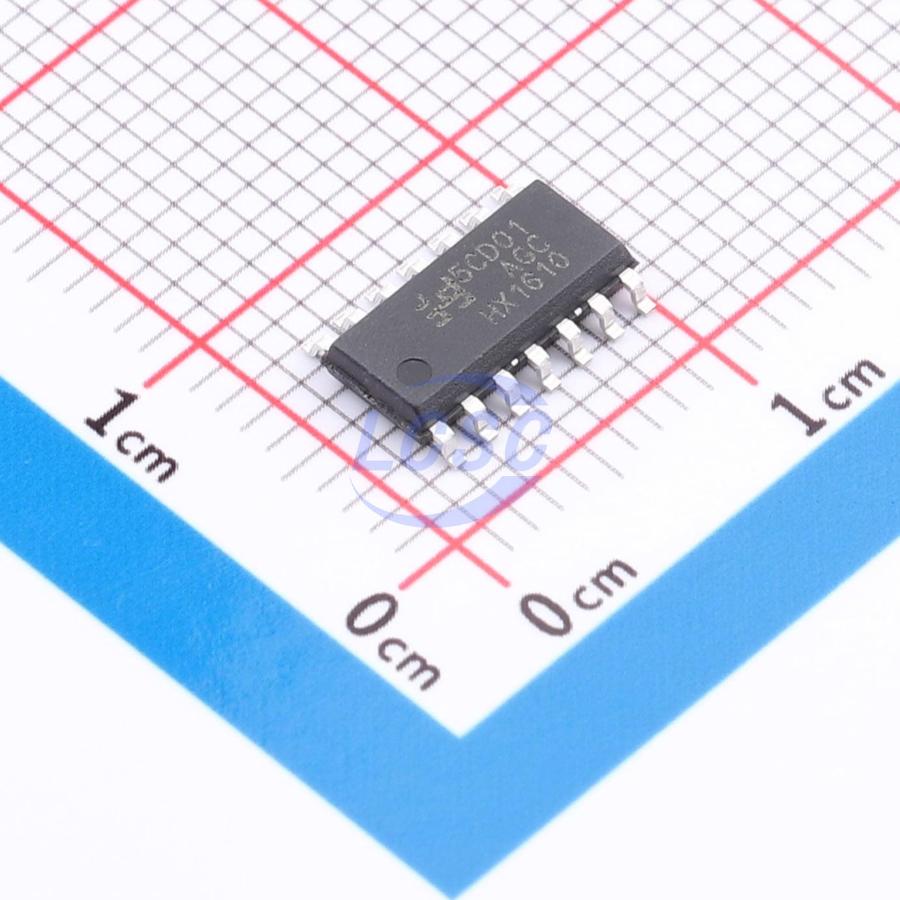

HX1610-AGC
Step-down type 80kHz Adjustable 3.5A 4.5V~15V SOP-14 Voltage Regulators - DC DC Switching Regulators
SOP-14RoHSActive
- Manufacturer
- HEXIN
- Manufacturer part #
- HX1610-AGC
- Store part #
- C42413071
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,950 in stock
#C42413071
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.00 | ₹68.00 |
| 10+ | ₹60.62 | ₹606.20 |
| 30+ | ₹56.93 | ₹1,707.90 |
| 100+ | ₹53.24 | ₹5,324.00 |
| 500+ | ₹51.05 | ₹25,525.00 |
| 1,000+ | ₹49.97 | ₹49,970.00 |
1 × ₹68.00
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
HX1610-AGC
₹68.00 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 80kHz
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3.5A
- Output Voltage
- 4.5V~15V
- Quiescent Current
- 1.52mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.223 g
Overview
HX1610-AGC is a synchronous buck regulator with a wide input voltage range of 8V to 60V. The HX1610-AGC delivers up to 3.5A continuous output current with excellent load and line regulation. Switching frequency is adjustable via a resistor, and the synchronous architecture enables high-efficiency design. Current mode operation provides fast transient response and simplified loop compensation. The HX1610-AGC incorporates soft-start, over-temperature protection, output short-circuit protection, and current limit protection for enhanced system reliability. The HX1610-AGC requires a minimal number of standard external components. This converter is available in an industry-standard SOP-14 package.
Applications
- Automotive systems
- Industrial automation and motor control
- Electric vehicles
- Vehicle accessories
- Rail vehicles
Key features
- Wide input voltage range: 8V to 60V
- Up to 96% efficiency
- Programmable switching frequency
- Programmable current limit
- Thermal shutdown
- Shutdown current 300µA
- SOP-14L package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IN1630-AGC#C49236381HEXIN · SOP-14 | HEXIN | SOP-14 | 3,919 | ₹62.63 · 3,919 in stock | View |
