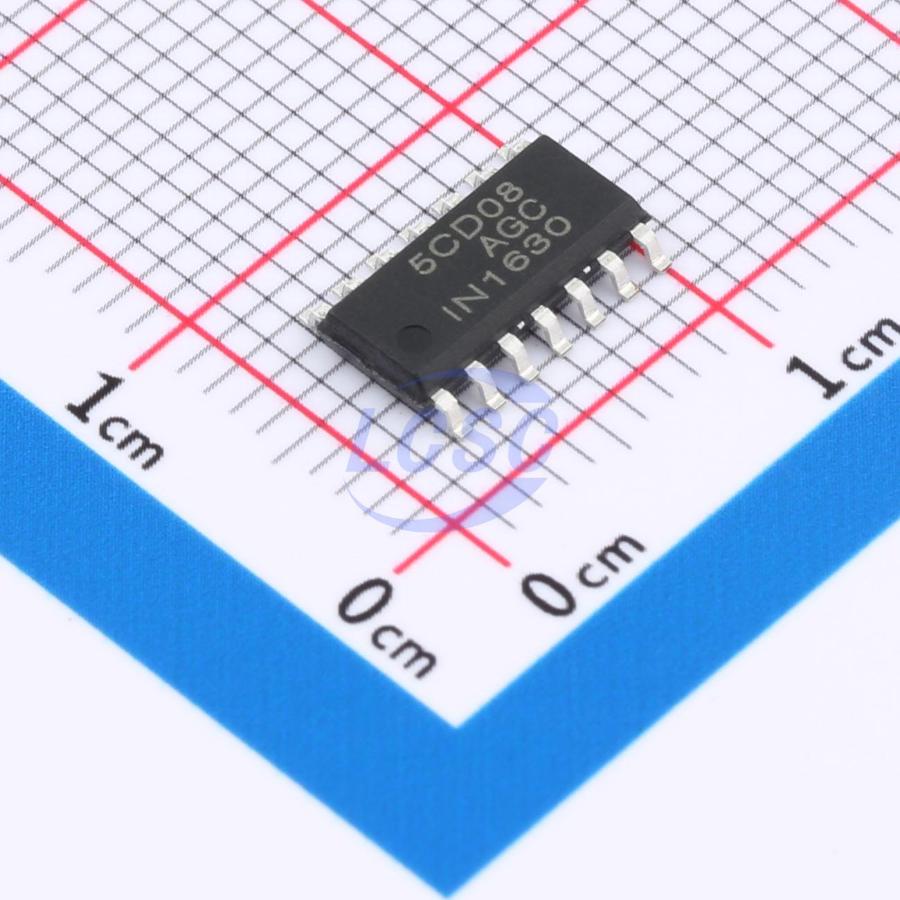

IN1630-AGC
Buck Switching Regulator IC Adjustable 4.5V~15V 3.5A SOP-14
SOP-14RoHSActive
Wide Range Synchronous Buck Converter
- Manufacturer
- HEXIN
- Manufacturer part #
- IN1630-AGC
- Store part #
- C49236381
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,919 in stock
#C49236381
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.63 | ₹62.63 |
| 10+ | ₹55.47 | ₹554.70 |
| 30+ | ₹52.01 | ₹1,560.30 |
| 100+ | ₹48.54 | ₹4,854.00 |
| 500+ | ₹46.37 | ₹23,185.00 |
| 1,000+ | ₹45.29 | ₹45,290.00 |
1 × ₹62.63
₹62.63
excl. GST
₹73.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IN1630-AGC
₹62.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+120℃@(TJ)
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 80kHz
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Overcurrent Protection;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3.5A
- Output Voltage
- 4.5V~15V
- Quiescent Current
- 1.52mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.244 g
Overview
IN1630-AGC is a synchronous buck regulator with a wide input voltage range of 8V to 60V. The device delivers a maximum continuous output current of 3.5A with excellent load and line regulation. The switching frequency is adjustable via a resistor, and the synchronous architecture ensures high-efficiency operation. Current mode control provides fast transient response and simplifies loop compensation design. IN1630-AGC integrates soft-start, over-temperature protection, output short-circuit protection, and current limiting protection to enhance system reliability. The device requires minimal standard external components. The IN1630-AGC converter is available in an industry-standard SOP-14 package.
Applications
- Automotive systems
- Industrial automation and motor control
- Energy storage system management
- Intelligent devices and robotics
- Solar power generation equipment
Key features
- Wide input voltage range: 8V to 60V
- Adjustable output voltage
- 300μA shutdown current
- Programmable switching frequency
- Programmable current limit
- Up to 95% efficiency
- Short-circuit protection
- Thermal shutdown protection
- Available in SOP-14 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX1610-AGC#C42413071HEXIN · SOP-14 | HEXIN | SOP-14 | 3,950 | ₹68.00 · 3,950 in stock | View |
