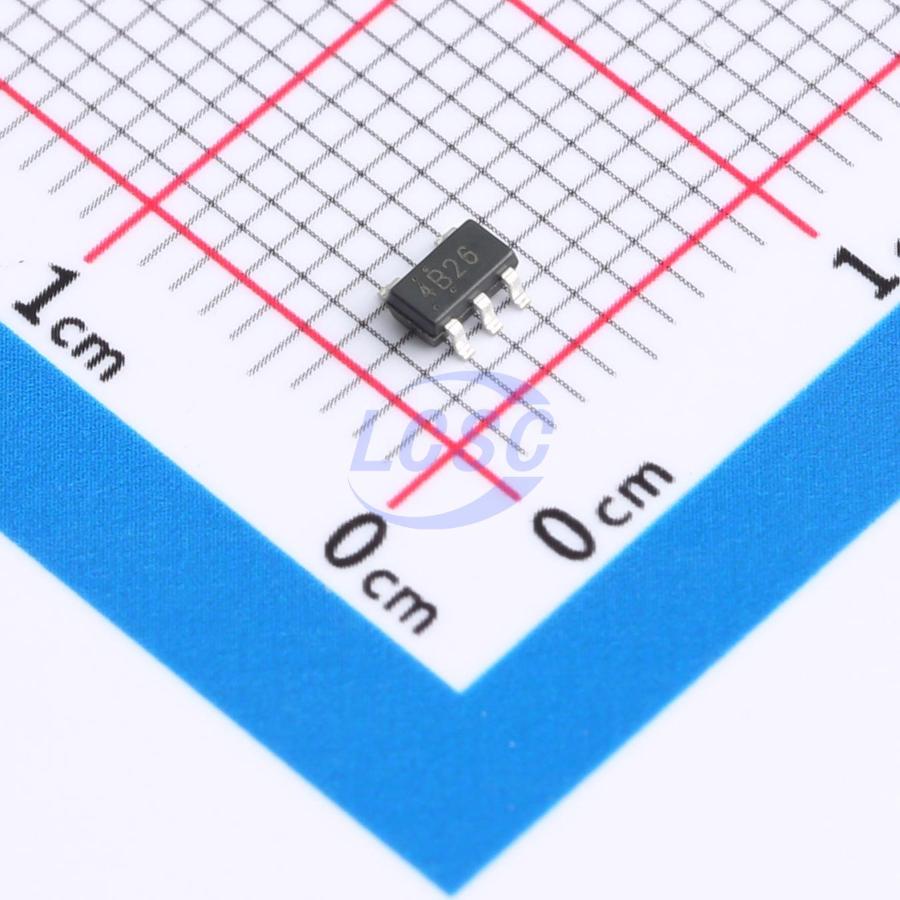

HEXIN

HX2001-GEC

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5L

SOT-23-5LRoHSActive

Low Dropout Linear Regulator

Manufacturer: HEXIN
Manufacturer part #: HX2001-GEC
Store part #: C47115460
Package / case: SOT-23-5L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,040 in stock

#C47115460

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.90	₹79.00
100+	₹6.24	₹624.00
300+	₹5.42	₹1,626.00
3,000+	₹4.80	₹14,400.00
6,000+	₹4.30	₹25,800.00
9,000+	₹4.05	₹36,450.00

Quantity (min 10, multiples of 10)

10 × ₹7.90

₹79.00

excl. GST

₹93.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX2001-GEC

₹79.00 for 10 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 60uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown;Output discharge
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.047 g

Overview

HX2001 is a 300mA maximum output current LDO linear regulator designed to deliver high-performance solutions for low-power systems. The device offers cost-effective performance for mobile phones, laptops, portable devices, and similar applications. Its proprietary design technology ensures high-performance operation. HX2001 is designed for use with low-cost ceramic capacitors, ensuring output current stability while improving efficiency to extend battery life in portable devices. The regulator is available in industry-standard SOT-23-5, SC70-5, DFN1.2×1.6-4L, and DFN2×2-6L power packages.
