hengjiaxing

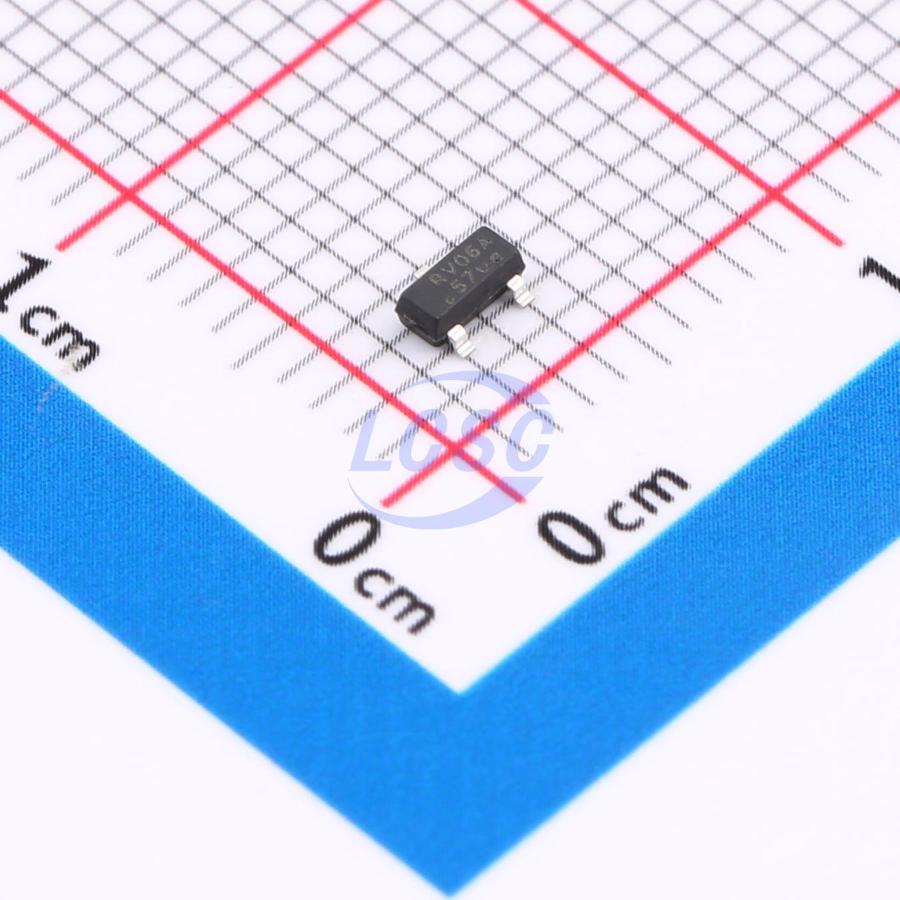

HX2306A

1 700mA SOT-23L Power Distribution Switches, Load Drivers RoHS

SOT-23LROHS CompliantActive

Overvoltage/Overcurrent Protection Switch Chip

Manufacturer: hengjiaxing
Manufacturer part #: HX2306A
Store part #: C45354730
Package / case: SOT-23L
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,960 in stock

#C45354730

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
20+	₹3.53	₹70.60
200+	₹2.75	₹550.00
600+	₹2.32	₹1,392.00
3,000+	₹2.06	₹6,180.00
9,000+	₹1.84	₹16,560.00
21,000+	₹1.72	₹36,120.00

Quantity (min 20, multiples of 20)

20 × ₹3.53

₹70.60

excl. GST

₹83.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX2306A

₹70.60 for 20 + GST

Specifications

Operating Temperature: -40℃~+155℃
Features: Overcurrent Protection;Overvoltage protection;Over temperature protection;Under-voltage lockout
number of channels: 1
Maximum Continuous Current: 700mA
Operating Voltage: 0V~7V
RDS(on): 350mΩ

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.036 g

Overview

HX2306A is an overvoltage/overcurrent protection switch IC with a built-in high-voltage-rated power MOSFET. The IC continuously monitors the input voltage and output current. When the input voltage or output current exceeds the preset threshold, the IC cuts off the voltage and current path by turning off the power MOSFET, thereby protecting downstream devices. HX2306A features a fixed built-in overcurrent protection threshold. In addition, the IC also provides overtemperature protection and undervoltage protection. HX2306A is an overvoltage/overcurrent protection switch IC that controls the switching of the built-in power MOSFET by monitoring the input voltage, output current, and battery voltage, thereby protecting downstream devices. When the input voltage is detected to exceed the preset threshold, the IC immediately turns off the power MOSFET to prevent instantaneous high voltage from passing through. When the output current is detected to exceed the preset threshold, to eliminate the effect of glitch currents, the IC first waits for a fixed period of time. After this period, if the output current remains above the preset threshold current, the built-in power MOSFET is turned off to prevent high current from damaging downstream devices. In addition, the IC also provides overtemperature protection and undervoltage protection.
