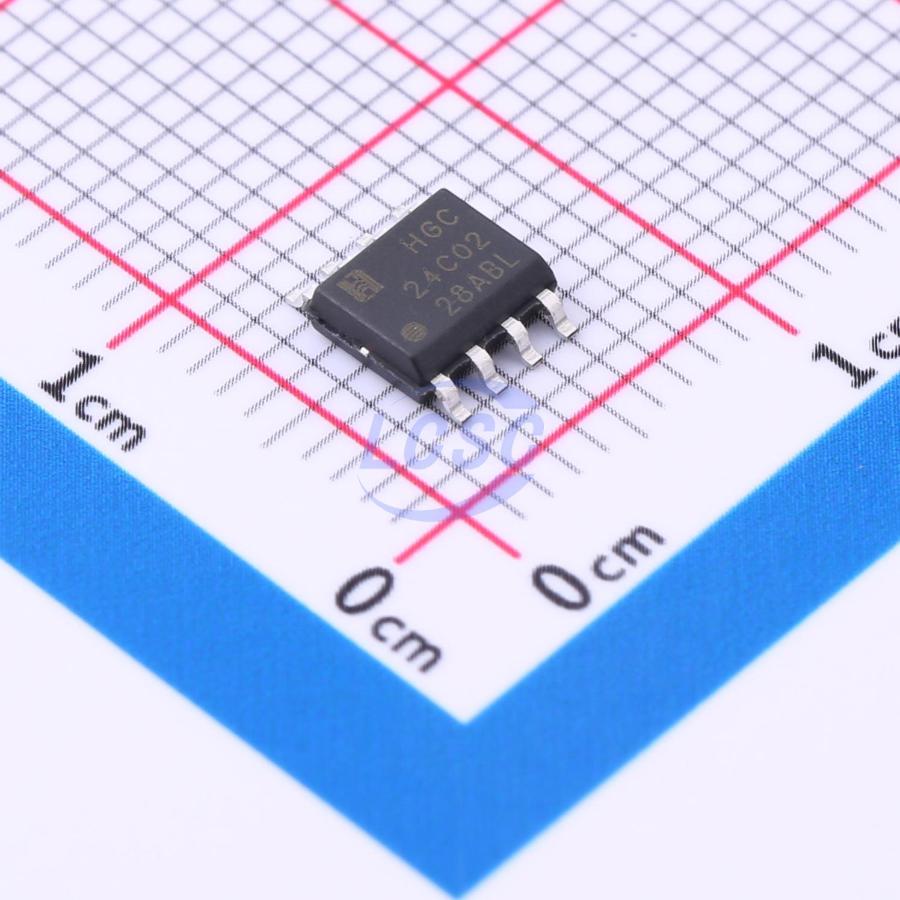

HX24C02DRG
2Kbit 1MHz I2C SOP-8 Memory RoHS
2K Bits Serial EEPROM
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX24C02DRG
- Store part #
- C5145453
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,470 in stock
#C5145453
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.14 | ₹81.40 |
| 100+ | ₹6.48 | ₹648.00 |
| 300+ | ₹5.65 | ₹1,695.00 |
| 2,500+ | ₹4.82 | ₹12,050.00 |
| 5,000+ | ₹4.31 | ₹21,550.00 |
| 10,000+ | ₹4.07 | ₹40,700.00 |
10 × ₹8.14
₹81.40
excl. GST
₹96.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX24C02DRG
₹81.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.21 g
Overview
HX24C02 / HX24C04 / HX24C08 / HX24C16 provide 2048/4096/8192/16384 bits of serial EEPROM, organized as 256/512/1024/2048 words of 8 bits each. These devices are optimized for a wide range of industrial and commercial applications where low power consumption and low voltage operation are essential. The HX24C02 / HX24C04 / HX24C08 / HX24C16 are available in space-saving 8-pin DIP, 8-pin SOP, 8-pin MSOP, and 5-pin SOT23 packages, and are accessible via a two-wire serial interface.
Key features
- Wide voltage operation, VCC = 1.7V ~ 5.5V
- Operating temperature range: -40℃ ~ +85℃
- Internal organization:
- HX24C02, 256 × 8 (2K bit)
- HX24C04, 512 × 8 (4K bit)
- HX24C08, 1024 × 8 (8K bit)
- HX24C16, 2048 × 8 (16K bit)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filtering
- Bidirectional data transfer protocol
- 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) compatibility
- Write protect pin for hardware data protection
- 8-byte page (2K), 16-byte page (4K, 8K, 16K) write modes
- Partial page write supported
- Self-timed write cycle (5 ms max)
- High reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Die sales: wafer form, waffle pack
- Package types: DIP-8, SOP-8, MSOP-8, SOT-23-5, SOT-23-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX24LC02BDRG#C2987256HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 1,280 | ₹9.60 · 1,280 in stock | View |
 | AT24C02CDRG#C19723704HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 720 | ₹6.88 · 720 in stock | View |
 | HX24C02CDRG#C49451907HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,380 | ₹8.47 · 2,380 in stock | View |
