HANSCHIP semiconductorDatasheet (PDF)

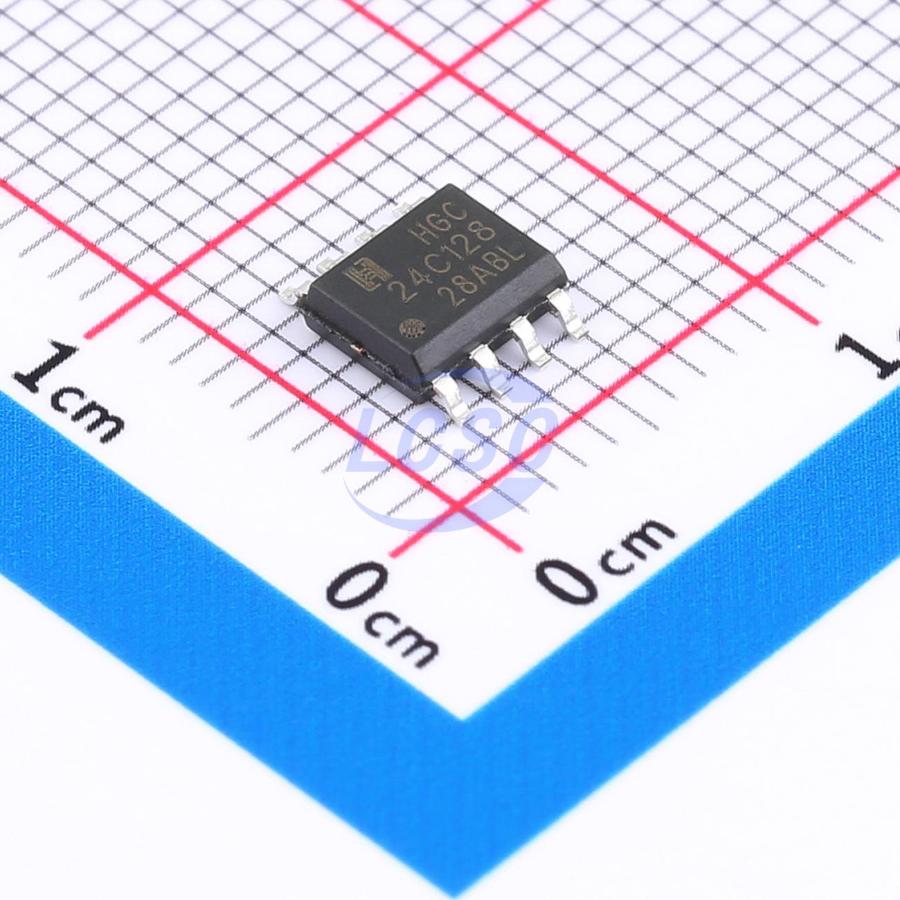

HX24C128DRG
128Kbit 1MHz I2C SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
128K Bits Serial EEPROM, Low Power, Wide Voltage Range, I2C Interface, EEPROM Memory
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX24C128DRG
- Store part #
- C5145456
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,170 in stock
#C5145456
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.95 | ₹114.75 |
| 50+ | ₹18.02 | ₹901.00 |
| 150+ | ₹15.92 | ₹2,388.00 |
| 500+ | ₹13.28 | ₹6,640.00 |
| 2,500+ | ₹12.11 | ₹30,275.00 |
| 5,000+ | ₹11.40 | ₹57,000.00 |
5 × ₹22.95
₹114.75
excl. GST
₹135.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX24C128DRG
₹114.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
HX24C128 / HX24C256 provides 131,072/262,144-bit serial EEPROM, organized as 4,096 8-bit words. The device is optimized for many industrial and commercial applications, suitable for low-power and low-voltage operation. Available in an 8-pin MSOP package, accessed via a two-wire serial interface.
Key features
- Wide voltage operation: VCC = 1.8V ~ 5.5V
- Low-power device available (ISB = 3 μA @ 5.5V)
- Operating temperature range: -40°C ~ +85°C
- Internal organization: 16,384 × 8 (128K), 32,768 × 8 (256K)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filter
- Bidirectional data transfer protocol
- 1 MHz (5V), 400 kHz (1.8V, 2.7V, 3.3V) compatible
- Write protect pin for hardware data protection
- Byte/page (128K/256K) write modes
- Partial page write supported
- Self-timed write cycle (5 ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Available in 8-pin DIP, 8-pin JEDEC SOP, and 8-pin MSOP packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX24LC128BDRG#C2987262HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 1,700 | ₹23.43 · 1,700 in stock | View |
