HANSCHIP semiconductorDatasheet (PDF)

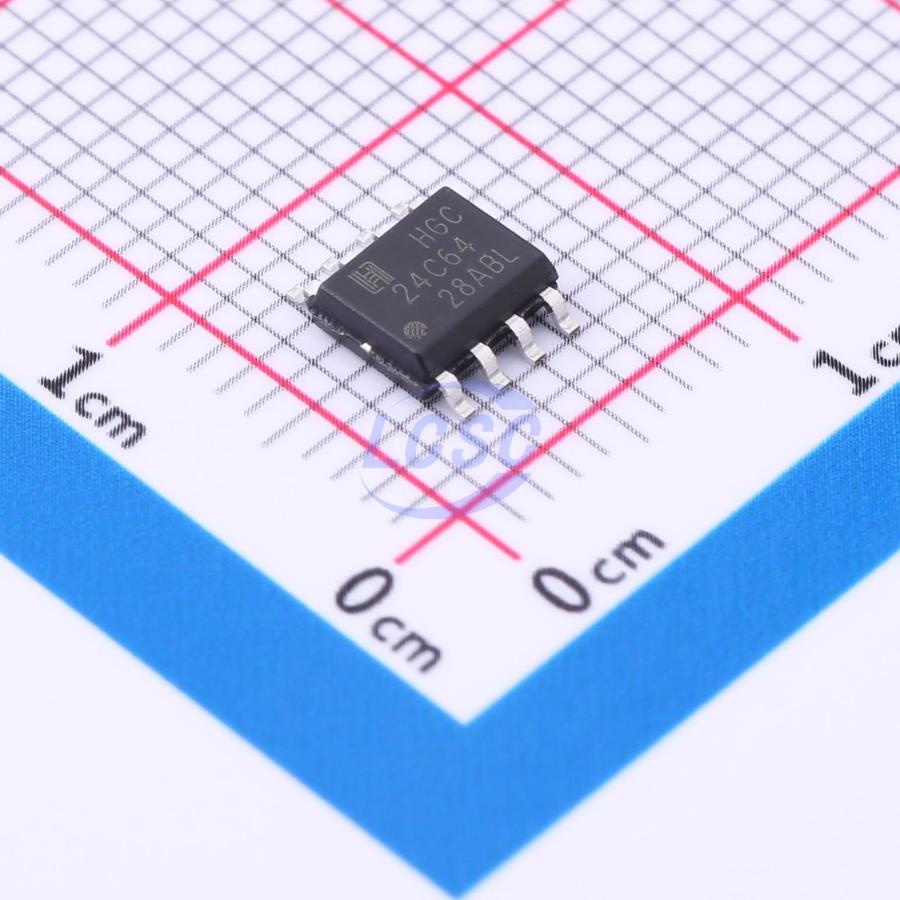

HX24C64DRG
64Kbit 1MHz I2C SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
64K Bit Serial EEPROM
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX24C64DRG
- Store part #
- C5145460
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,160 in stock
#C5145460
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.59 | ₹82.95 |
| 50+ | ₹14.57 | ₹728.50 |
| 150+ | ₹13.69 | ₹2,053.50 |
| 500+ | ₹12.61 | ₹6,305.00 |
| 2,500+ | ₹11.55 | ₹28,875.00 |
| 5,000+ | ₹11.26 | ₹56,300.00 |
5 × ₹16.59
₹82.95
excl. GST
₹97.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX24C64DRG
₹82.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 64Kbit
- Voltage - Supply
- 1.8V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
HX24C32/HX24C64 provides 32,768/65,536 bits of serial EEPROM, organized as 4,096/8,192 words of 8 bits each. The device is optimized for industrial and commercial applications where low power consumption and low voltage operation are critical. HX24C32/HX24C64 is available in space-saving 8-pin DIP, 8-pin SOP, and 8-pin MSOP packages, and is accessed via a two-wire serial interface.
Key features
- Wide voltage operating range: VCC = 1.8V ~ 5.5V
- Operating temperature range: -40°C ~ +85°C
- Internal organization:
- HX24C32: 4096×8 (32K bits)
- HX24C64: 8192×8 (64K bits)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filtering
- Bidirectional data transfer protocol
- Compatible with 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V)
- Write protect pin for hardware data protection
- 32-byte page (32K, 64K) write mode
- Partial page write supported
- Self-timed write cycle (5 ms max)
- High reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Available in DIP-8, SOP-8, MSOP-8 packages
