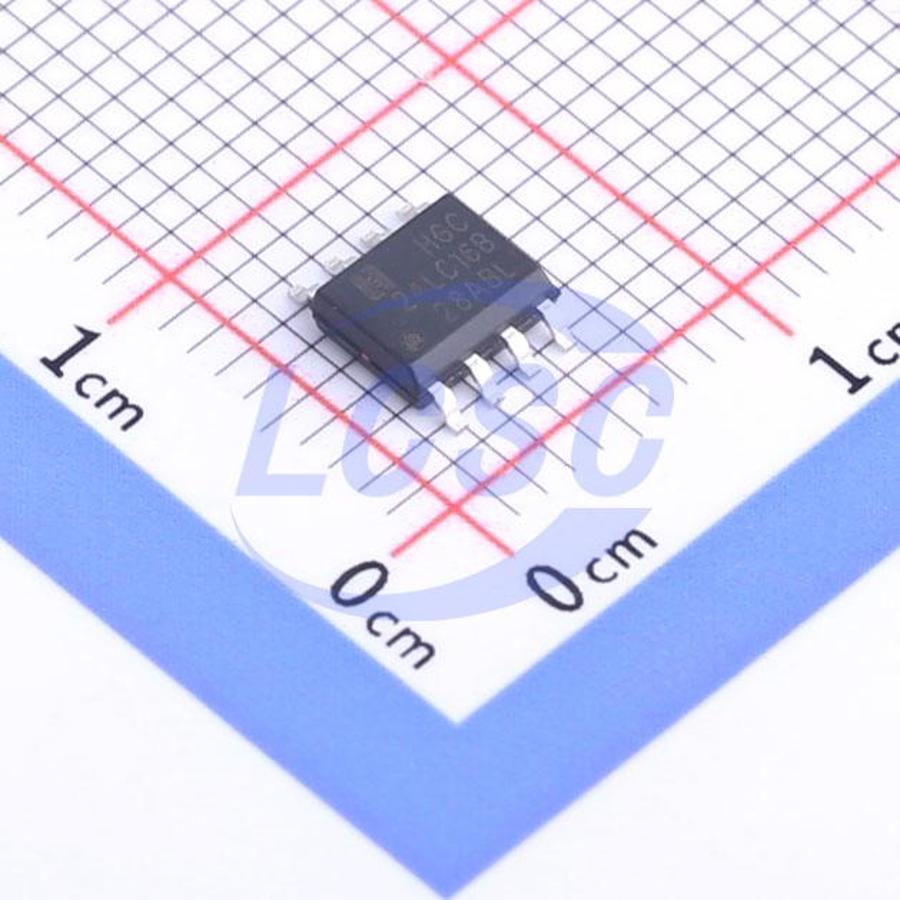

HX24LC16BDRG
16Kbit 1MHz I2C SOP-8 Memory RoHS
EEPROM bidirectional data transfer protocol
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX24LC16BDRG
- Store part #
- C2987259
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,675 in stock
#C2987259
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.42 | ₹82.10 |
| 50+ | ₹13.04 | ₹652.00 |
| 150+ | ₹11.35 | ₹1,702.50 |
| 500+ | ₹10.08 | ₹5,040.00 |
| 2,500+ | ₹8.78 | ₹21,950.00 |
| 5,000+ | ₹8.28 | ₹41,400.00 |
5 × ₹16.42
₹82.10
excl. GST
₹96.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX24LC16BDRG
₹82.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us;0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.15 g
Overview
HX24LC02B / HX24LC04B / HX24LC08B / HX24LC16B provide 2048/4096/8192/16384 bits of serial EEPROM, organized as 256/512/1024/2048 words of 8 bits each. These devices are optimized for industrial and commercial applications where low power consumption and low voltage operation are critical. Available in space-saving 8-pin DIP, 8-pin SOP, 8-pin MSOP, and 5-pin SOT23 packages, they are accessed via a two-wire serial interface.
Key features
- Wide voltage operating range: VCC = 1.7V to 5.5V
- Operating temperature range: -40℃ to +85℃
- Internal organization:
- HX24LC02B: 256 × 8 (2K bits)
- HX24LC04B: 512 × 8 (4K bits)
- HX24LC08B: 1024 × 8 (8K bits)
- HX24LC16B: 2048 × 8 (16K bits)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filtering
- Bidirectional data transfer protocol
- Compatible with 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V)
- Write protect pin for hardware data protection
- 8-byte page (2K), 16-byte page (4K, 8K, 16K) write modes
- Partial page write supported
- Self-timed write cycle (5 ms max)
- High reliability: 1,000,000 write cycle endurance, 100-year data retention
- Die sales form: wafer, waffle pack
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX24C16DRG#C5145457HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 1,305 | ₹9.67 · 1,305 in stock | View |
