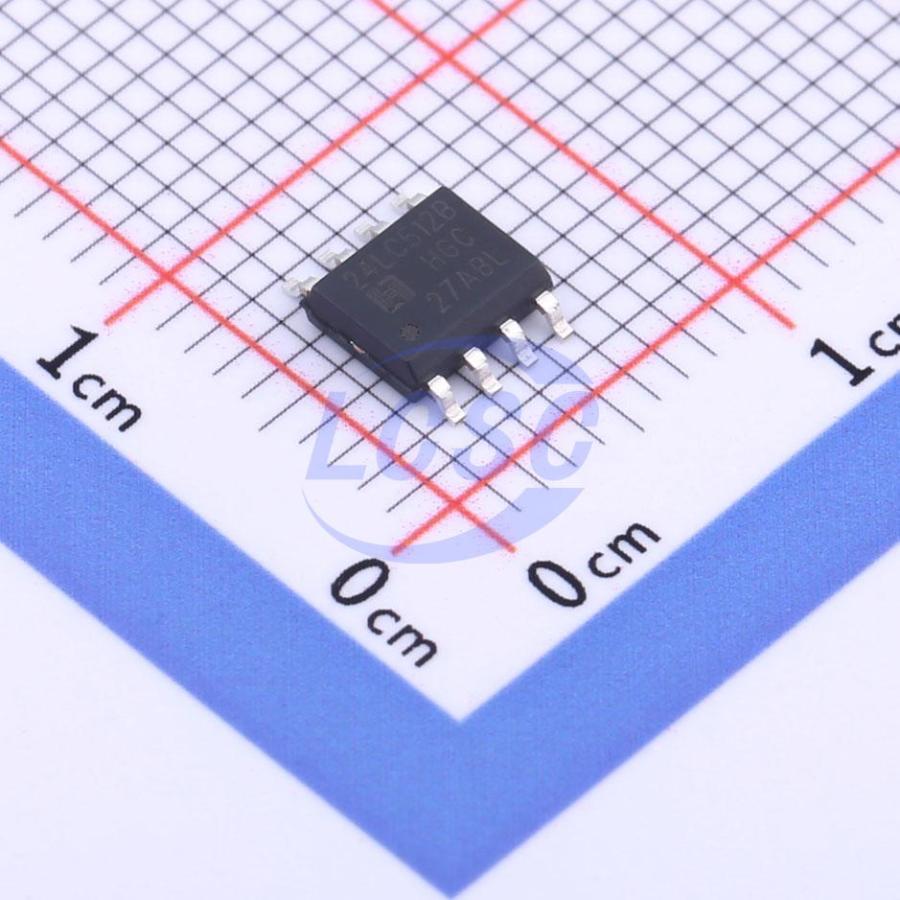

HX24LC512BDRG
512Kbit 1MHz I2C SOP-8 Memory RoHS
Low-voltage Operation Compatible 512K EEPROM
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX24LC512BDRG
- Store part #
- C2987264
- Package / case
- SOP-8
- Category
- Memory
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,634 in stock
#C2987264
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.78 | ₹72.78 |
| 10+ | ₹57.37 | ₹573.70 |
| 30+ | ₹50.84 | ₹1,525.20 |
| 100+ | ₹42.59 | ₹4,259.00 |
| 500+ | ₹37.81 | ₹18,905.00 |
| 1,000+ | ₹35.64 | ₹35,640.00 |
1 × ₹72.78
₹72.78
excl. GST
₹85.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HX24LC512BDRG
₹72.78 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.8V~5.5V;2mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
The HX24LC512 provides 524,288 bits of serial EEPROM, organized as 65,536 words of 8 bits each. The cascadable feature of the device allows up to eight devices to share a common two-wire bus. The device is optimized for a wide range of industrial and commercial applications where low power consumption and low voltage operation are critical. It is available in space-saving 8-pin PDIP, 8-pin JEDEC SOP, 8-pin MSOP, and 8-pin TSSOP packages.
Key features
- Low-voltage operation (VCC = 1.8V to 5.5V)
- Operating temperature range: -40°C to +85°C
- Internal organization: 65,536 x 8 (512K)
- Two-wire serial interface
- Schmitt trigger inputs with noise suppression filtering
- Bidirectional data transfer protocol
- 1MHz (5V), 400kHz (1.8V, 2.5V, 2.7V) compatible
- Write protect pin for hardware data protection
- 128-byte page (512K) write mode
- Partial page write supported
- Self-timed write cycle (5ms max)
- High reliability
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Available in 8-pin DIP, 8-pin SOP, 8-pin MSOP, and 8-pin TSSOP packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX24C512DRG#C5145459HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 186 | ₹64.66 · 186 in stock | View |
 | AT24C512CDRG#C19723714HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 5,185 | ₹27.99 · 5,185 in stock | View |
