hengjiaxingDatasheet (PDF)

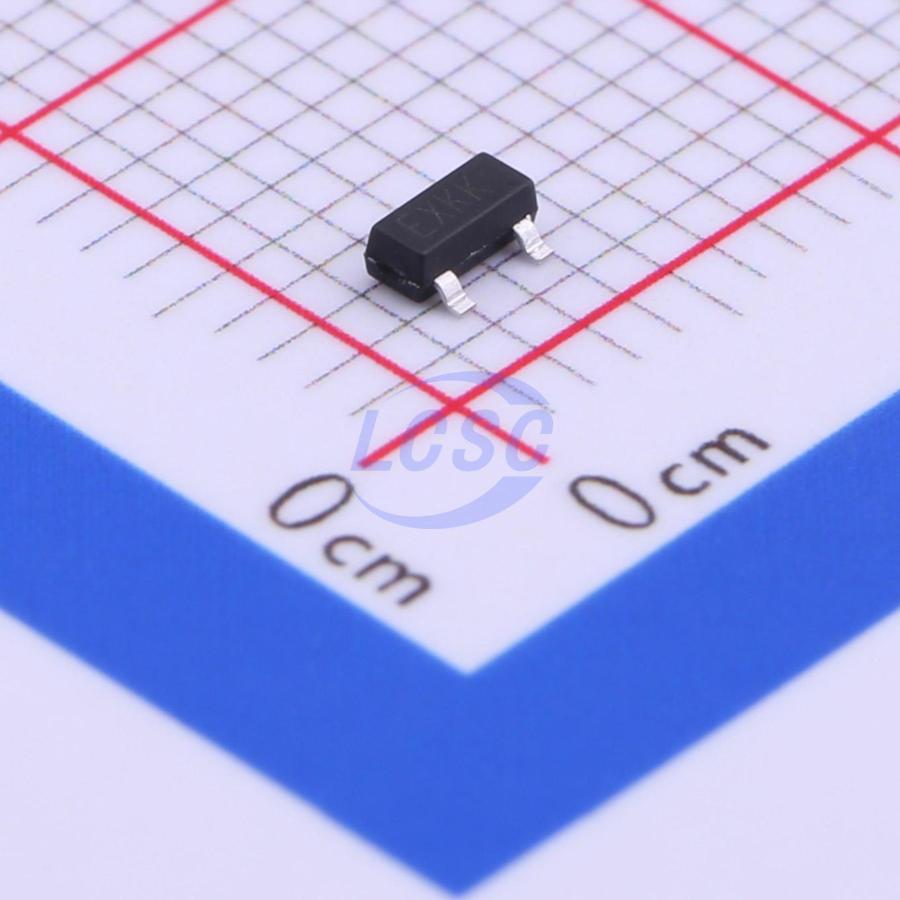

HX3216P182MR
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 1.8V 100mA SOT-23
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX3216P182MR
- Store part #
- C296291
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,390 in stock
#C296291
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.03 | ₹70.30 |
| 100+ | ₹5.58 | ₹558.00 |
| 300+ | ₹4.86 | ₹1,458.00 |
| 3,000+ | ₹4.31 | ₹12,930.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
| 9,000+ | ₹3.66 | ₹32,940.00 |
10 × ₹7.03
₹70.30
excl. GST
₹82.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX3216P182MR
₹70.30 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 10V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
The HX3216 series is a low-power, high-voltage regulator fabricated using CMOS process technology, with a maximum input voltage of 10V and an output voltage range of 1.8V to 3.6V. With an integrated internal filter capacitor, the two external 10μF input/output capacitors can be omitted in the application. Key features include high-accuracy output voltage, ultra-low quiescent current, and ultra-low dropout voltage.
Applications
- Battery and other power supply equipment
- Various communication devices
- Audio/video equipment
- Security and surveillance equipment
- Toys
Key features
- Low power consumption: ≲3μA
- Low dropout voltage: typical 0.1V
- Low temperature coefficient: typical 50 ppm/°C
- High input voltage: up to 10V
- High-accuracy output voltage: ±2.5% tolerance
- Package: SOT-23
