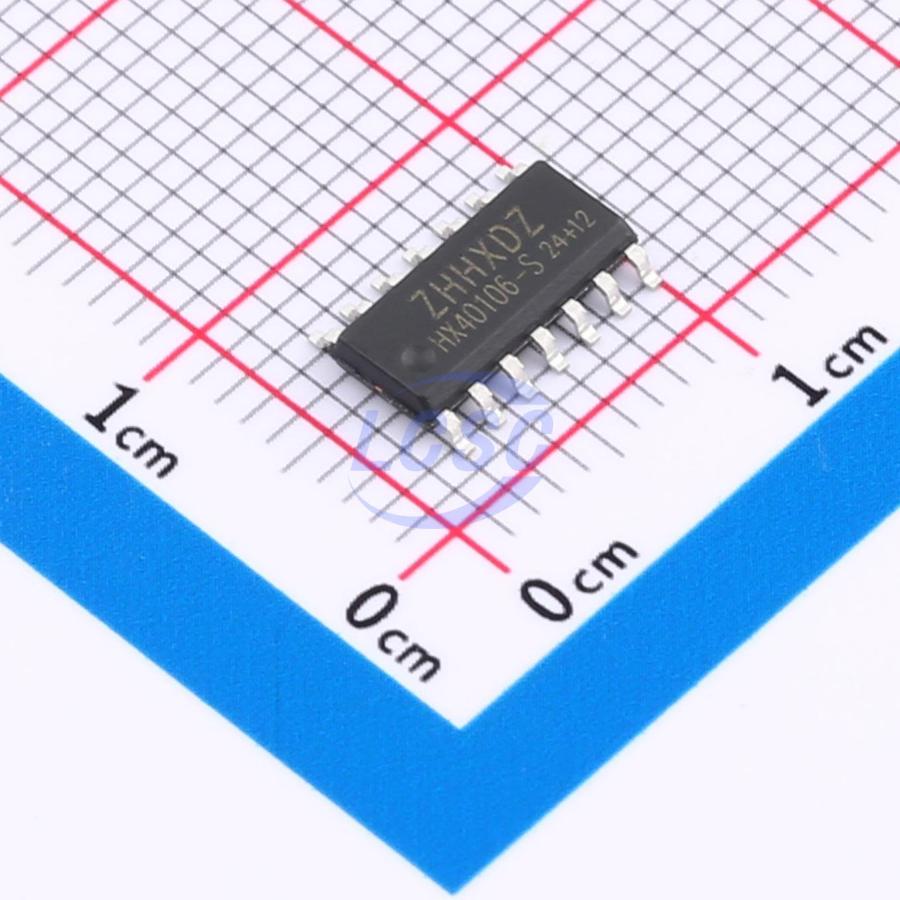

ZHHXDZ

HX40106-S

3V~15V 1 6 SOP-14 Flip Flops RoHS

SOP-14ROHS CompliantActive

Six-way Schmidt trigger

Manufacturer: ZHHXDZ
Manufacturer part #: HX40106-S
Store part #: C42431634
Package / case: SOP-14
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,775 in stock

#C42431634

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹12.18	₹60.90
50+	₹9.63	₹481.50
150+	₹8.35	₹1,252.50
500+	₹7.40	₹3,700.00
2,500+	₹6.63	₹16,575.00
5,000+	₹6.24	₹31,200.00

Quantity (min 5, multiples of 5)

5 × ₹12.18

₹60.90

excl. GST

₹71.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

HX40106-S

₹60.90 for 5 + GST

Specifications

Voltage - Supply: 3V~15V
Number of Bits per Element: 1
Operating Temperature: -20℃~+85℃
Number of Elements: 6
Current - Output High(IOH): 1mA
Current - Output Low(IOL): 1.6mA
Quiescent Current: 1uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.252 g

Overview

HX40106-S is composed of six CMOS reverse circuits, each circuit input has a Schmitt trigger circuit, trigger switch at different potentials, output for positive and negative signals, the voltage difference between the positive voltage (VP) and the negative voltage (VN) is defined as the hysteresis voltage (VH). When in use, the input end of the unused channel needs to be connected to the power supply or ground to reduce the power consumption of the chip.
