hengjiaxingDatasheet (PDF)

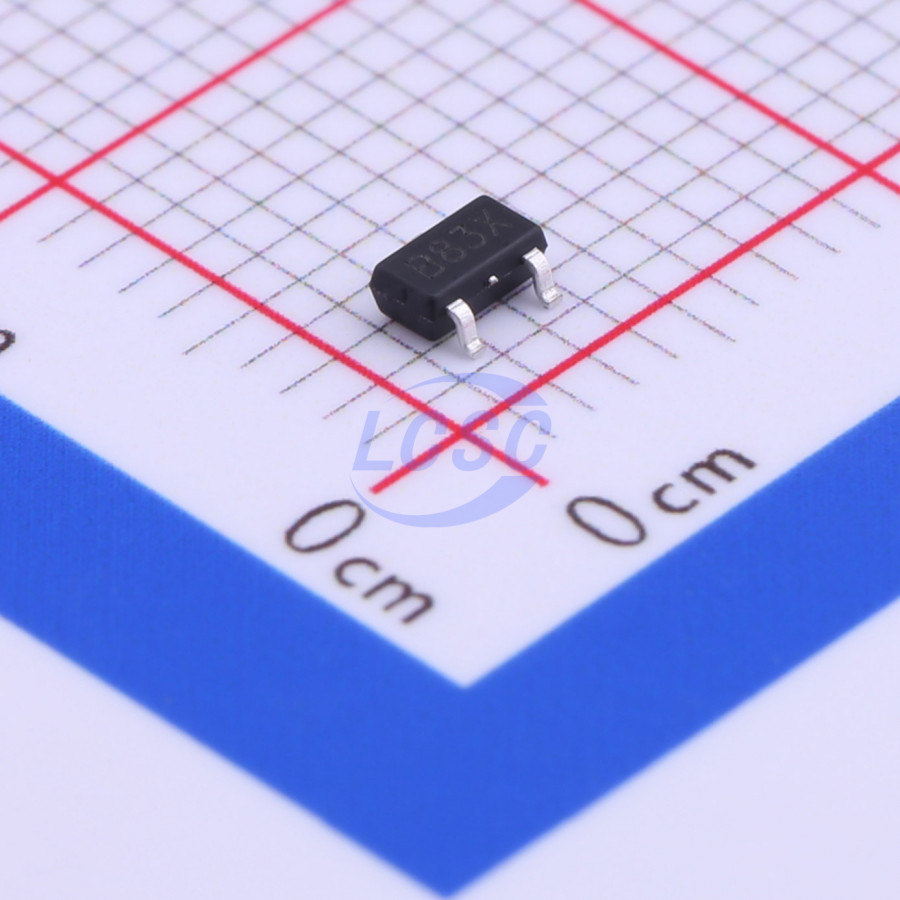

HX61CC1802MR
Supervisor Push-Pull 1 Channel SOT-23-3L
SOT-23-3LROHS CompliantActive
IC SUPERVISOR 1 CHANNEL SOT-23-3L
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX61CC1802MR
- Store part #
- C296268
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C296268
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.70 | ₹67.00 |
| 100+ | ₹5.39 | ₹539.00 |
| 300+ | ₹4.74 | ₹1,422.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.26 | ₹29,340.00 |
| 21,000+ | ₹3.22 | ₹67,620.00 |
| 39,000+ | ₹3.19 | ₹1,24,410.00 |
10 × ₹6.70
₹67.00
excl. GST
₹79.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX61CC1802MR
₹67.00 for 10 + GST
Specifications
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 1.8V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
HX61C series is a high-precision, low-power voltage detector IC fabricated using CMOS process technology and laser trimming. The HX61C series exhibits minimal temperature drift, delivering high voltage detection accuracy. The HX61C series offers two output modes: CMOS and N-channel open-drain.
Applications
- Battery detector, level selector
- Non-volatile RAM signal storage protector
- Power-fail detector
- Battery backup storage
- Microprocessor reset
Key features
- Low power consumption: typical 2.0uA
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature drift detection voltage: typical ±50ppm/°C
- Detection voltage: 2.0V - 5.0V, in 0.1V steps
- Output type: N-channel open-drain output, CMOS output
- Compact package: SOT23-3, SOT89-3, TO92
