hengjiaxingDatasheet (PDF)

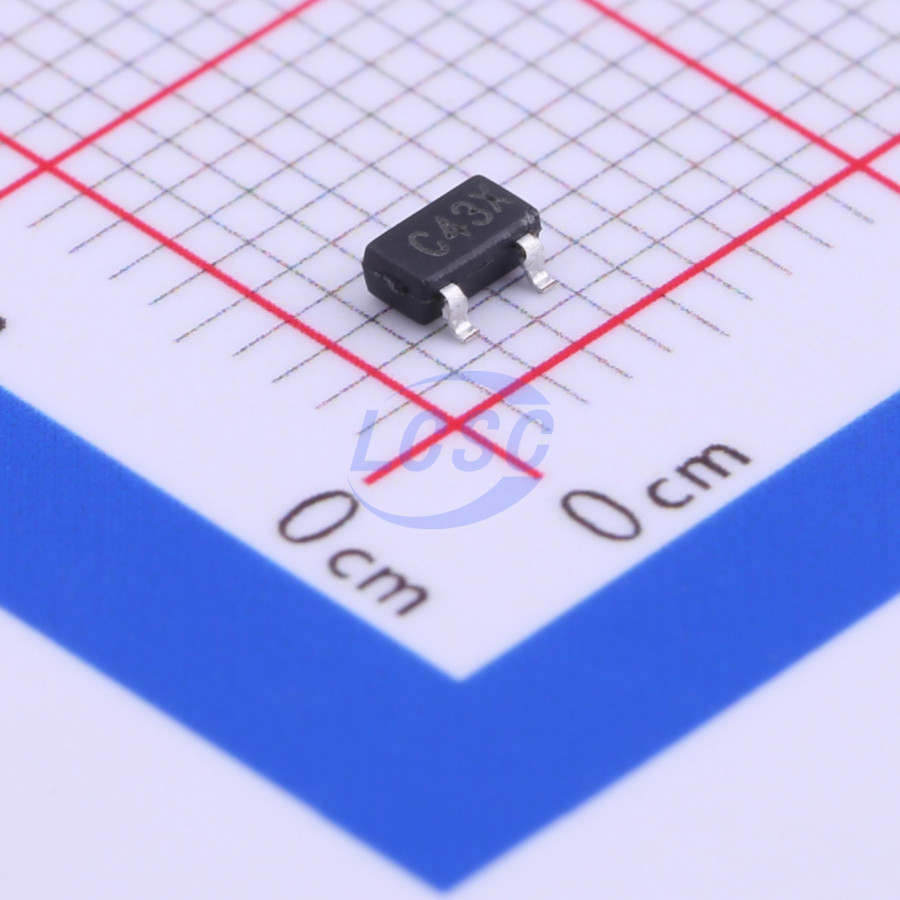

HX61CC2402MR
Supervisor Open Drain 1 Channel SOT-23-3L
SOT-23-3LROHS CompliantActive
Low Voltage Detector
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX61CC2402MR
- Store part #
- C296266
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C296266
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.03 | ₹80.30 |
| 100+ | ₹6.44 | ₹644.00 |
| 300+ | ₹5.65 | ₹1,695.00 |
| 3,000+ | ₹4.62 | ₹13,860.00 |
| 6,000+ | ₹4.14 | ₹24,840.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
10 × ₹8.03
₹80.30
excl. GST
₹94.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX61CC2402MR
₹80.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The HX61C series is a high-precision, low-power voltage detector IC manufactured using CMOS process technology and laser trimming. The HX61C series is minimally affected by temperature drift characteristics, achieving high voltage detection accuracy. The HX61C series offers two output modes: CMOS and N-channel open-drain.
Applications
- Battery detector, level selector
- Non-volatile RAM signal storage protector
- Power failure detector
- Battery backup storage
- Microcontroller reset
Key features
- Low power consumption: typical 2.0uA
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature coefficient detection voltage: typical ±50ppm/°C
- Detection voltage: 2.0V - 5.0V, in 0.1V steps
- Output type: N-channel open-drain output, CMOS output
- Compact package: SOT23-3, SOT89-3, TO92
