hengjiaxingDatasheet (PDF)

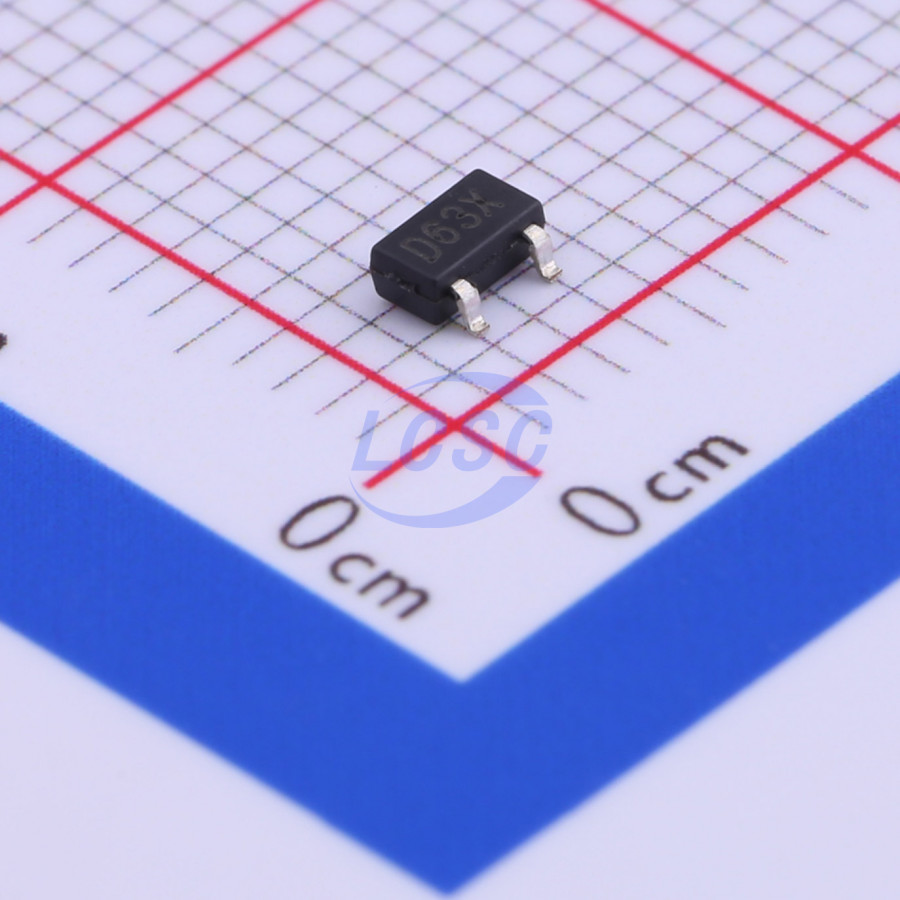

HX61CC3602MR
Supervisor 1 Channel SOT-23-3L
SOT-23-3LROHS CompliantActive
IC SUPERVISOR 1 CHANNEL SOT-23-3L
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX61CC3602MR
- Store part #
- C296261
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C296261
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.41 | ₹74.10 |
| 100+ | ₹5.83 | ₹583.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 3,000+ | ₹4.47 | ₹13,410.00 |
| 6,000+ | ₹4.00 | ₹24,000.00 |
| 9,000+ | ₹3.76 | ₹33,840.00 |
10 × ₹7.41
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX61CC3602MR
₹74.10 for 10 + GST
Specifications
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃@(TA)
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.6V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The HX61C series is a high-accuracy, low-power voltage detector IC manufactured using CMOS process technology and laser trimming. The HX61C series exhibits minimal temperature drift, delivering high voltage detection accuracy. The HX61C series offers two output modes: CMOS and N-channel open-drain.
Applications
- Battery detector, level selector
- Non-volatile RAM signal storage protector
- Power-fail detector
- Battery backup storage
- Microprocessor reset
Key features
- Low power consumption: typical 2.0uA
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature drift detection voltage: typical ±50ppm/°C
- Detection voltage: 2.0V - 5.0V, in 0.1V steps
- Output type: N-channel open-drain output, CMOS output
- Compact package: SOT23-3, SOT89-3, TO92
