HANSCHIP semiconductorDatasheet (PDF)

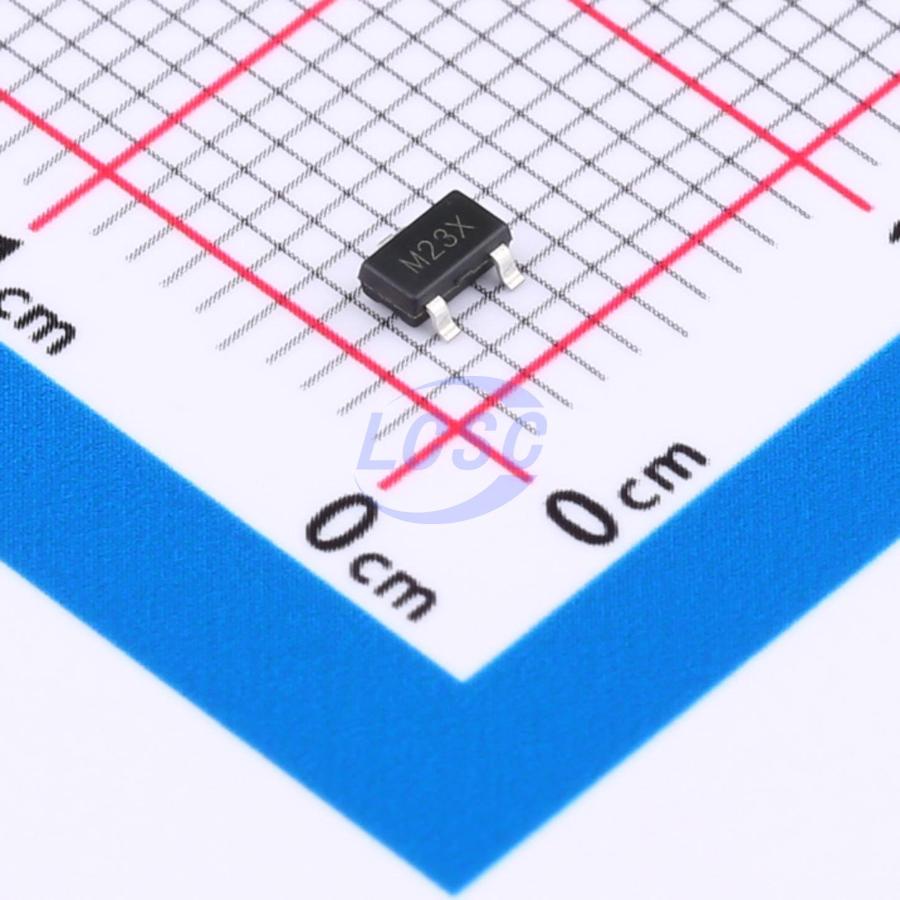

HX61CN2202MR
Supervisor Open Drain SOT-23-3L
SOT-23-3LROHS CompliantActive
IC SUPERVISOR SOT-23-3L
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX61CN2202MR
- Store part #
- C5145463
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,740 in stock
#C5145463
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.14 | ₹91.40 |
| 100+ | ₹7.28 | ₹728.00 |
| 300+ | ₹6.35 | ₹1,905.00 |
| 3,000+ | ₹5.41 | ₹16,230.00 |
| 6,000+ | ₹4.86 | ₹29,160.00 |
| 9,000+ | ₹4.58 | ₹41,220.00 |
10 × ₹9.14
₹91.40
excl. GST
₹107.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX61CN2202MR
₹91.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.2V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The HX61Cxx series is a high-accuracy, low-power voltage detector IC fabricated using CMOS process technology and laser trimming. The series exhibits minimal temperature drift, delivers high voltage detection accuracy, and offers a choice of two output modes: CMOS and N-channel open-drain.
Applications
- Battery Detector and Level Selector
- Power Failure Detector
- Microprocessor Reset
- Non-Volatile RAM Signal Storage Protector
- Battery Backup Storage
Key features
- Low power consumption: typical 2.0uA
- Wide operating voltage range: 1.5V~12V
- Low temperature drift detection voltage: typical ±50ppm/℃
- Output type: N-channel open-drain (HX61CNxx) or CMOS output (HX61CCxx)
- Built-in hysteresis
- High-accuracy voltage detection: ±3%
- Detection voltage range: 1.8V~5.0V, in 0.1V steps
- Compact package: SOT-23, SOT-89-3
