hengjiaxingDatasheet (PDF)

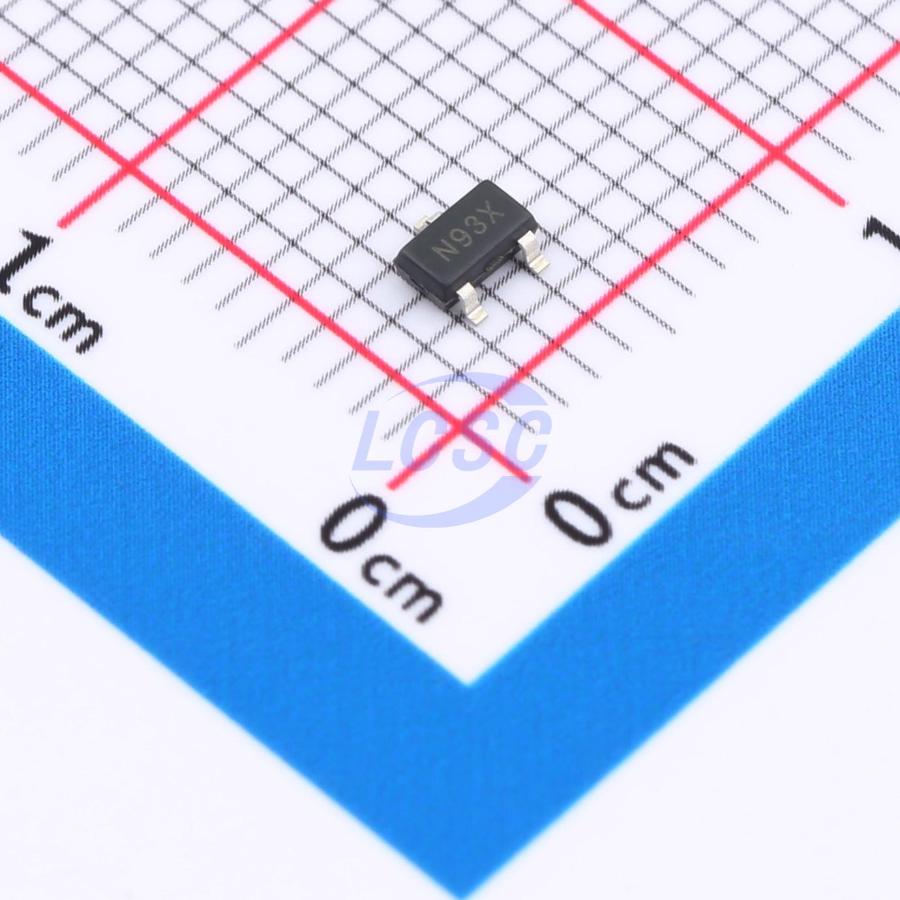

HX61CN3902MR
Supervisor Open Drain SOT-23-3L
SOT-23-3LROHS CompliantActive
Low Voltage Detector
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX61CN3902MR
- Store part #
- C296253
- Package / case
- SOT-23-3L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C296253
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.06 | ₹80.60 |
| 100+ | ₹6.48 | ₹648.00 |
| 300+ | ₹5.69 | ₹1,707.00 |
| 3,000+ | ₹4.59 | ₹13,770.00 |
| 6,000+ | ₹4.11 | ₹24,660.00 |
| 9,000+ | ₹3.88 | ₹34,920.00 |
10 × ₹8.06
₹80.60
excl. GST
₹95.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX61CN3902MR
₹80.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.9V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
HX61C series is a high-precision, low-power voltage detector IC fabricated using CMOS process technology and laser trimming. The HX61C series is minimally affected by temperature drift characteristics, achieving high voltage detection accuracy. The HX61C series offers two output modes: CMOS and N-channel open-drain.
Applications
- Battery detector, level selector
- Non-volatile RAM signal storage protector
- Power failure detector
- Battery backup storage
- Microcontroller reset
Key features
- Low power consumption: typical 2.0uA
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature drift detection voltage: typical ±50ppm/°C
- Detection voltage: 2.0V - 5.0V, in 0.1V steps
- Output type: N-channel open-drain output, CMOS output
- Compact package: SOT23-3, SOT89-3, TO92
