HANSCHIP semiconductorDatasheet (PDF)

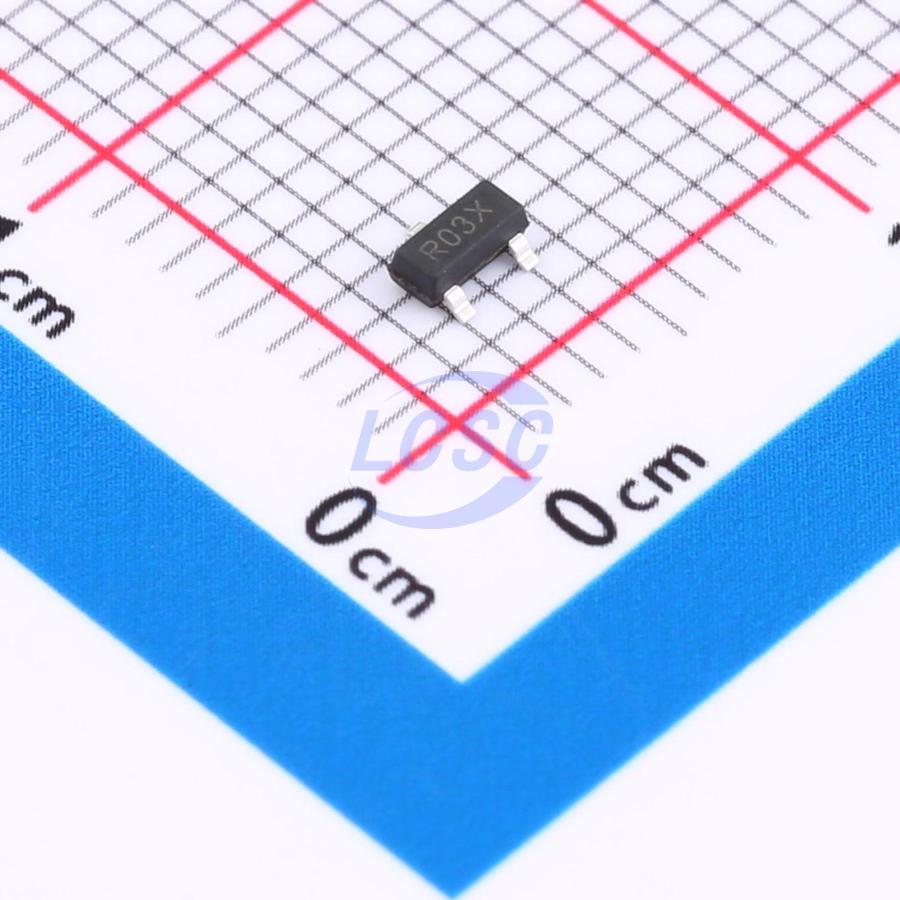

HX61CN5002MR
Supervisor Open Drain 1 Channel SOT-23-3
SOT-23-3ROHS CompliantActive
IC SUPERVISOR 1 CHANNEL SOT-23-3
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX61CN5002MR
- Store part #
- C47344213
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C47344213
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.85 | ₹88.50 |
| 100+ | ₹7.00 | ₹700.00 |
| 300+ | ₹6.07 | ₹1,821.00 |
| 3,000+ | ₹5.38 | ₹16,140.00 |
| 6,000+ | ₹4.83 | ₹28,980.00 |
| 9,000+ | ₹4.55 | ₹40,950.00 |
10 × ₹8.85
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX61CN5002MR
₹88.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
The HX61Cxx series is a high-accuracy, low-power voltage detector IC fabricated using CMOS process technology and laser trimming. The series exhibits minimal temperature drift, delivers high voltage detection accuracy, and offers a choice of two output modes: CMOS and N-channel open-drain.
Applications
- Battery Detector and Level Selector
- Power Failure Detector
- Microprocessor Reset
- Non-Volatile RAM Signal Storage Protector
- Battery Backup Storage
Key features
- Low power consumption: typical 2.0uA
- Wide operating voltage range: 1.5V~12V
- Low temperature drift detection voltage: typical ±50ppm/℃
- Output type: N-channel open-drain (HX61CNxx) or CMOS output (HX61CCxx)
- Built-in hysteresis
- High-accuracy voltage detection: ±3%
- Detection voltage range: 1.8V~5.0V, in 0.1V steps
- Compact package: SOT-23, SOT-89-3
