hengjiaxingDatasheet (PDF)

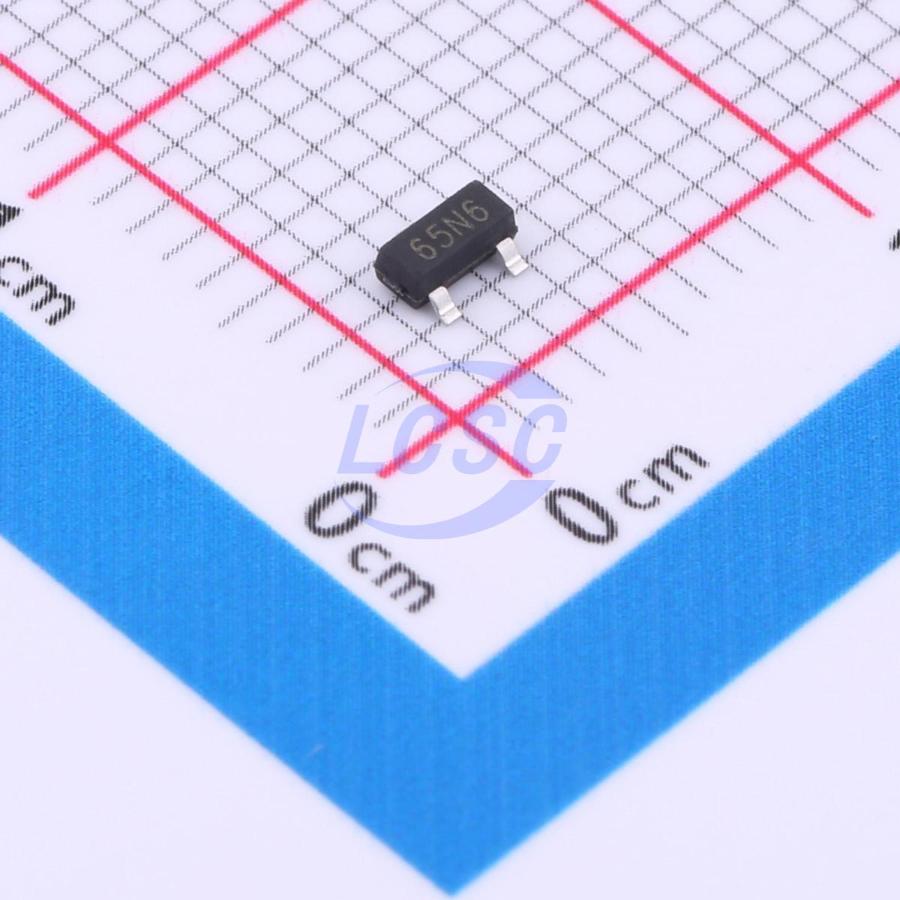

HX6206P212MR
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 2.1V 250mA SOT-23
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX6206P212MR
- Store part #
- C2984942
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2984942
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.42 | ₹71.00 |
| 500+ | ₹1.07 | ₹535.00 |
| 3,000+ | ₹0.979 | ₹2,937.00 |
| 6,000+ | ₹0.860 | ₹5,160.00 |
| 24,000+ | ₹0.7673 | ₹18,415.20 |
| 51,000+ | ₹0.7012 | ₹35,761.20 |
50 × ₹1.42
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX6206P212MR
₹71.00 for 50 + GST
Specifications
- Output Voltage
- 2.1V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6.5V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.032 g
Overview
The HX6206 series are CMOS step-down voltage regulators featuring high ripple rejection ratio, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices offer a very low quiescent current (6.0μA Typ.) and are capable of delivering 250mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are particularly suitable for battery-powered applications where extended battery life is desired, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instruments
- Wireless control systems
- Automotive electronics
- Portable/handheld computers
- Voltage reference sources
Key features
- High output voltage accuracy: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V~5.0V (step 0.1V)
- Strong load capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Ultra-low quiescent current (Typ. = 6.0μA)
- Suitable for use as regulator and voltage reference
- Low temperature coefficient
- Good line regulation: Typ. 0.03%/V
- Package: SOT89-3, SOT23-3, SOT23
