hengjiaxingDatasheet (PDF)

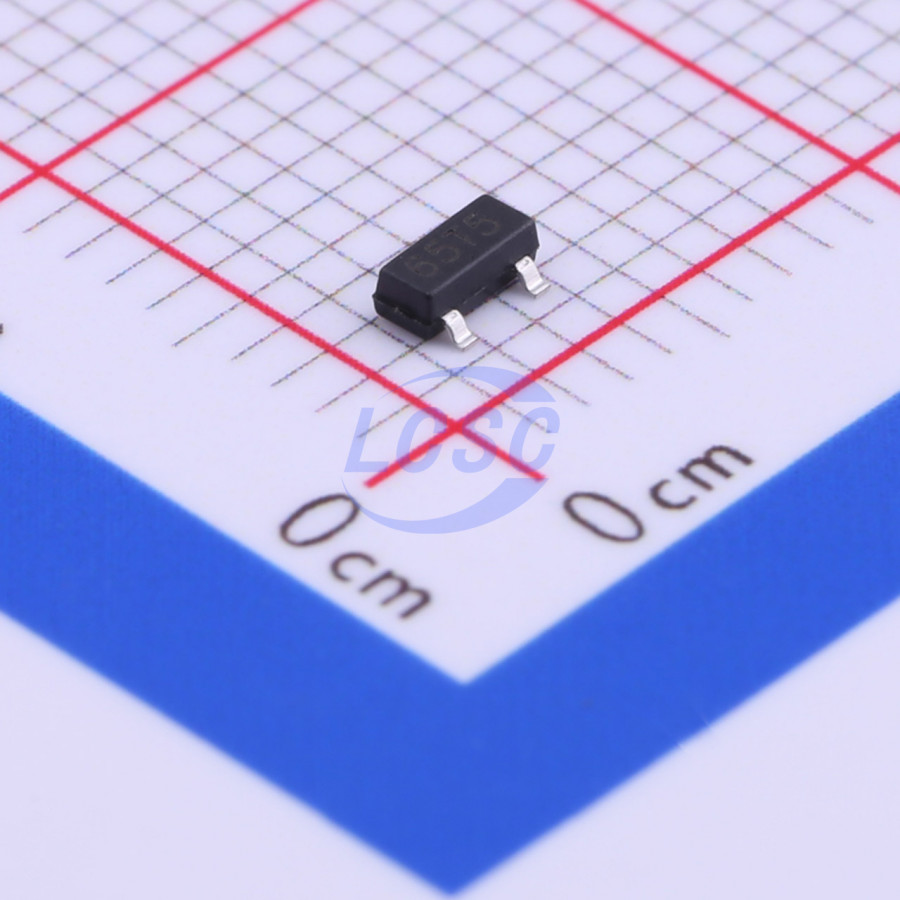

HX6206P252MR
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 2.5V 250mA SOT-23
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX6206P252MR
- Store part #
- C296238
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C296238
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.94 | ₹58.80 |
| 200+ | ₹2.29 | ₹458.00 |
| 600+ | ₹1.93 | ₹1,158.00 |
| 3,000+ | ₹1.71 | ₹5,130.00 |
| 9,000+ | ₹1.52 | ₹13,680.00 |
| 21,000+ | ₹1.43 | ₹30,030.00 |
20 × ₹2.94
₹58.80
excl. GST
₹69.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX6206P252MR
₹58.80 for 20 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6.5V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
The HX6206 series are CMOS step-down voltage regulators featuring high ripple rejection ratio, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices offer a very low quiescent current (6.0μA Typ.) and are capable of delivering 250mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are particularly suitable for battery-powered applications where extended battery life is desired, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instruments
- Wireless control systems
- Automotive electronics
- Portable/handheld computers
- Voltage reference sources
Key features
- High output voltage accuracy: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V~5.0V (step 0.1V)
- Strong load capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Ultra-low quiescent current (Typ. = 6.0μA)
- Suitable for use as regulator and voltage reference
- Low temperature coefficient
- Good line regulation: Typ. 0.03%/V
- Package: SOT89-3, SOT23-3, SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX6306P252MR#C296214hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 20 | ₹5.70 · 20 in stock | View |
 | XC6206-2.5NR#C2984871hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | On request | ₹2.63 · 0 in stock | View |
