hengjiaxingDatasheet (PDF)

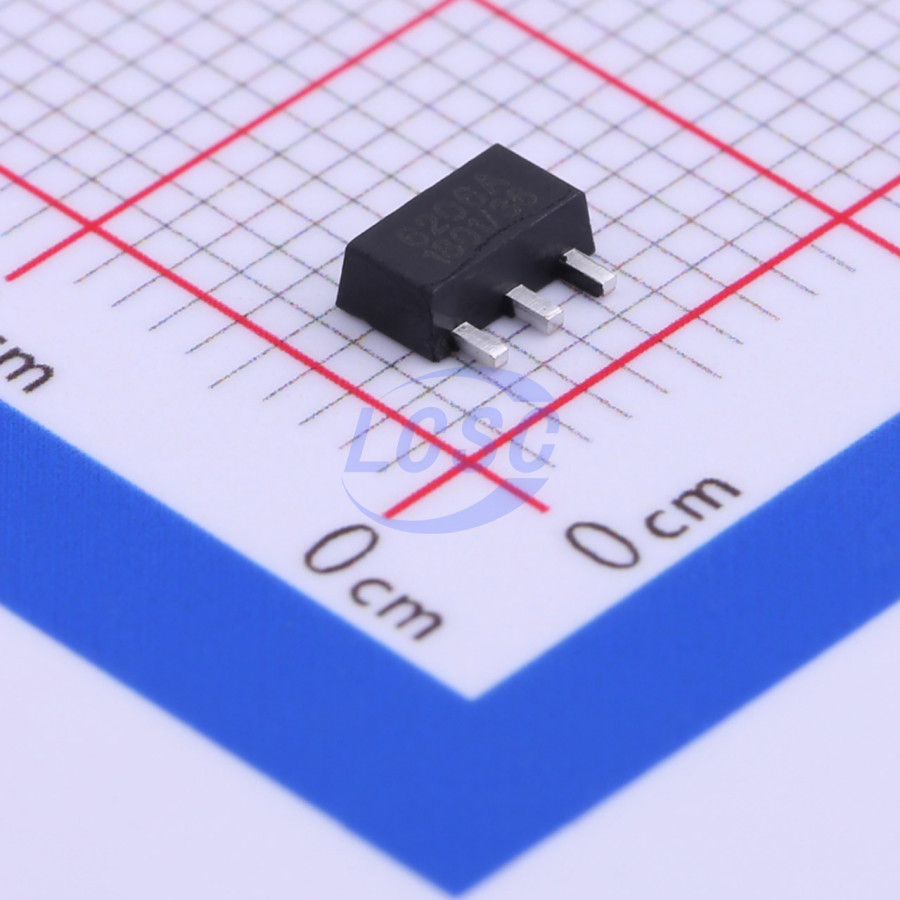

HX6206P362PR
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-89-3
SOT-89-3ROHS CompliantActive
IC REG LINEAR 3.6V 250mA SOT-89-3
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX6206P362PR
- Store part #
- C296226
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C296226
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.44 | ₹64.40 |
| 100+ | ₹5.20 | ₹520.00 |
| 300+ | ₹4.56 | ₹1,368.00 |
| 1,000+ | ₹3.70 | ₹3,700.00 |
| 5,000+ | ₹3.32 | ₹16,600.00 |
| 10,000+ | ₹3.14 | ₹31,400.00 |
| 20,000+ | ₹3.10 | ₹62,000.00 |
| 40,000+ | ₹3.07 | ₹1,22,800.00 |
10 × ₹6.44
₹64.40
excl. GST
₹75.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HX6206P362PR
₹64.40 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 250mA
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.086 g
Overview
The HX6206 series are CMOS step-down voltage regulators featuring high ripple rejection ratio, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices offer a very low quiescent current (6.0μA Typ.) and are capable of delivering 250mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the low dropout voltage and low quiescent current, these devices are particularly suitable for battery-powered applications where extended battery life is desired, such as computers, consumer electronics, and industrial equipment.
Applications
- Battery-powered systems
- Portable consumer devices
- Cordless telephone equipment
- Portable instruments
- Wireless control systems
- Automotive electronics
- Portable/handheld computers
- Voltage reference sources
Key features
- High output voltage accuracy: ±2.5%
- Maximum input voltage up to 6.5V
- Output voltage: 1.5V~5.0V (step 0.1V)
- Strong load capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Ultra-low quiescent current (Typ. = 6.0μA)
- Suitable for use as regulator and voltage reference
- Low temperature coefficient
- Good line regulation: Typ. 0.03%/V
- Package: SOT89-3, SOT23-3, SOT23
