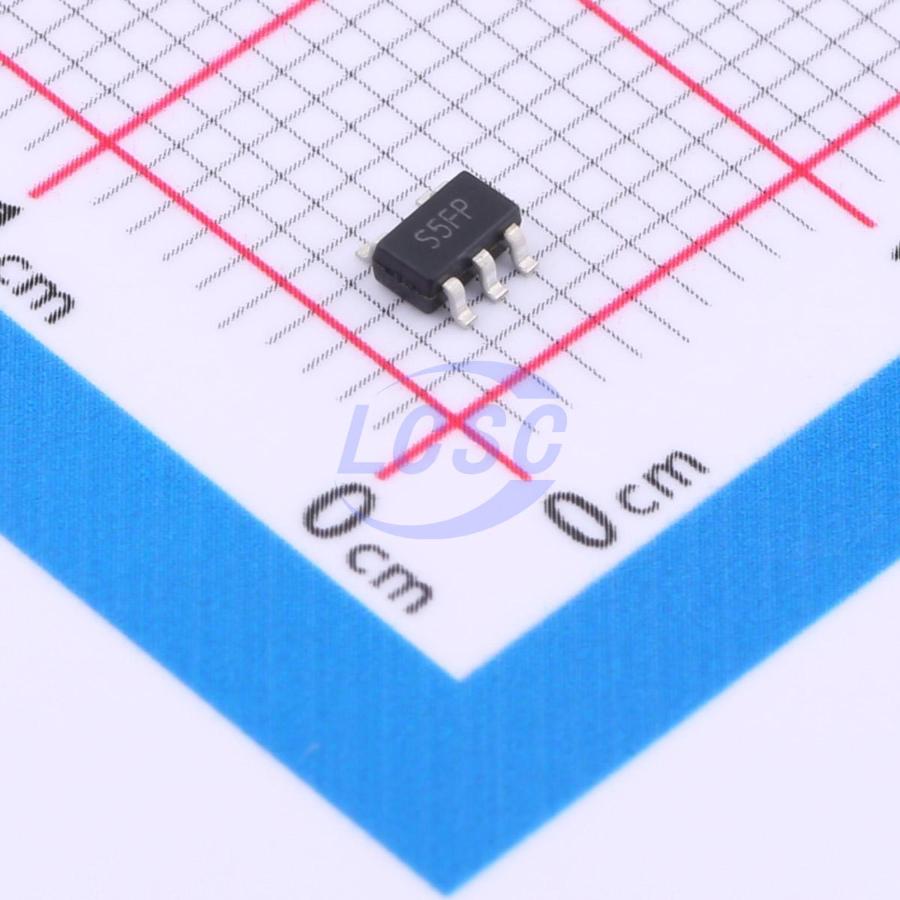

HX6211B182MR

The HX6211 series are high-precision, low-noise, fast-response LDO linear regulators fabricated using CMOS process technology. This series integrates a fixed reference voltage, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and fast-response low-dropout performance. The HX6211 series is compatible with ceramic capacitors, which are smaller in size than tantalum capacitors, and does not require a 0.1 μF bypass capacitor, saving board space and reducing cost. With high-precision output stability and fast transient response to handle load current fluctuations, it is particularly suitable for handheld devices and RF products. By controlling the CE pin on the chip, the output can be shut down. The quiescent current in shutdown mode is only 0.1 μA (typ.), significantly reducing power consumption.

Applications

• Smartphones/mobile phones
• Bluetooth and other RF products
• Digital cameras/camcorders
• Portable consumer devices
• Battery-powered equipment

Key features

• High output voltage accuracy: ±2.0%
• High load capability: Iout = 400mA at Vin = 4.3V and Vout = 3.3V
• Selectable output voltage: 1.8V ~ 5.0V
• Ultra-low quiescent current (Typ. = 15 μA)
• Built-in overcurrent protection and load short-circuit protection
• Ultra-low shutdown current (Typ. = 0.1 μA)
• Ceramic capacitor compatible
• Excellent line regulation: Typ. = 0.2%/V
• Package: SOT89-5, SOT223-5
