hengjiaxingDatasheet (PDF)

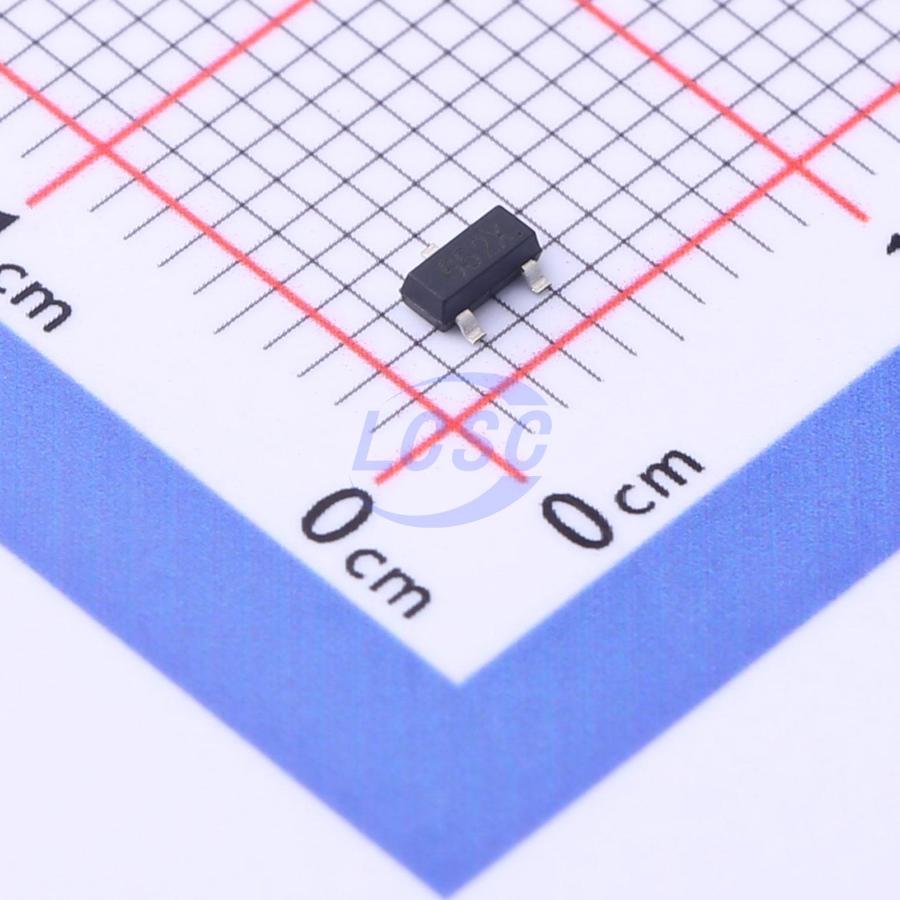

HX6606P332MR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23ROHS CompliantDiscontinued
300mA low-power consumption regulated power supply
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX6606P332MR
- Store part #
- C2984866
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C2984866
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.88 | ₹97.60 |
| 200+ | ₹3.93 | ₹786.00 |
| 600+ | ₹3.45 | ₹2,070.00 |
| 3,000+ | ₹2.79 | ₹8,370.00 |
| 9,000+ | ₹2.50 | ₹22,500.00 |
| 21,000+ | ₹2.35 | ₹49,350.00 |
20 × ₹4.88
₹97.60
excl. GST
₹115.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX6606P332MR
₹97.60 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
The HX6606 series is a set of three-terminal low-power, high-accuracy voltage regulators implemented in CMOS technology. This series can deliver a large load current at low dropout voltage. The HX6606 series consists of a current limiting circuit, a driver transistor, a precision voltage reference, and an error correction circuit. The foldback circuit of the current limiter operates as short-circuit protection and output current limiting for the output pin. The output voltage is determined by an internal fuse, and any voltage in the range of 1.2~5.0V can be output.
Applications
- Battery-powered devices
- Reference voltage sources
- Cameras, camcorders
- Portable audio/video systems
- Mobile phones
- Portable gaming
Key features
- Low power consumption
- Low dropout voltage
- Stable temperature coefficient
- Low quiescent current: 5.5μA at 6V input
- Output voltage accuracy: ±2%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6206-3.3NR#C2984874hengjiaxing · SOT-23 | hengjiaxing | SOT-23 | 4,050 | ₹2.10 · 4,050 in stock | View |
