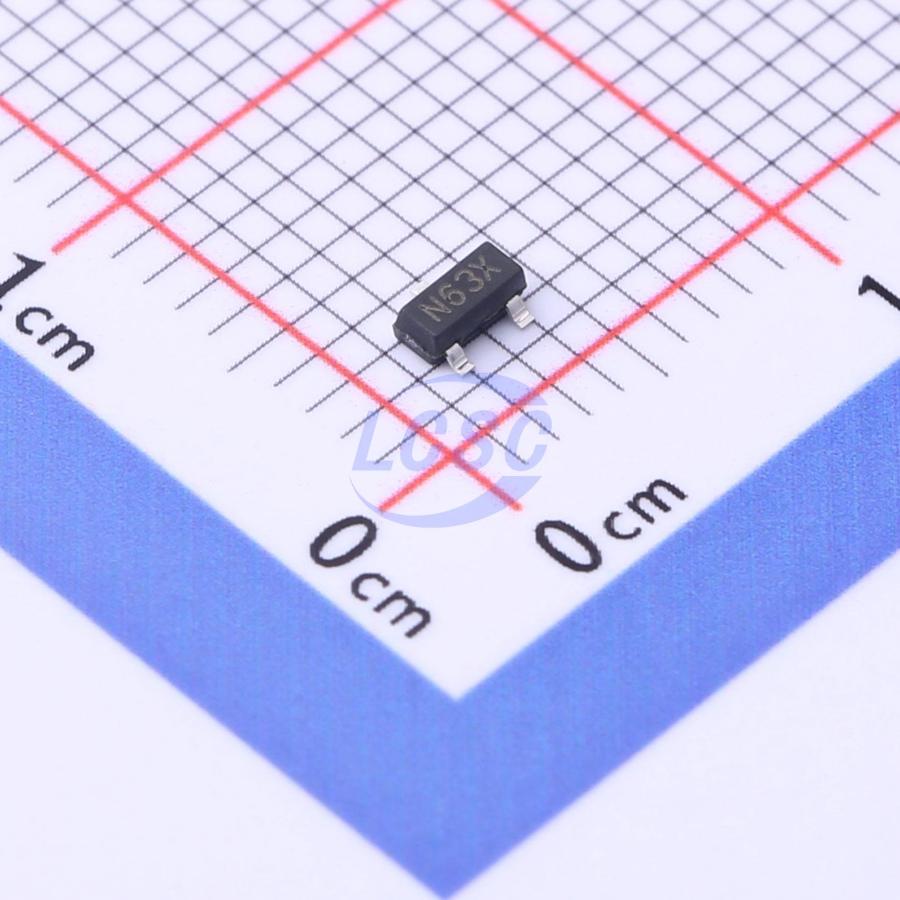

HX7036

The HX70XX series is a three-pin low voltage detector implemented in CMOS technology. This series detects fixed voltages ranging from 2.2V to 7V. The detector consists of four functional blocks: a high-accuracy, low-power reference voltage source, a comparator, a hysteresis circuit, and an output driver. CMOS technology ensures low power consumption. Although the detector is primarily designed for fixed-voltage detection, user-defined threshold voltages can also be detected via external components (NMOS open-drain type only).

Applications

• Battery detector, level selector
• Non-volatile RAM signal storage protector
• Power failure detector
• Battery backup storage
• Microcontroller reset

Key features

• Low power consumption, typical: 2.0uA
• Built-in hysteresis
• Wide operating voltage range: 1.5V~12V
• High-accuracy voltage detection: ±3%
• Low temperature drift detection voltage: typical ±50ppm/℃
• Compact package: SOT89-3、TO92、SOT23-3
