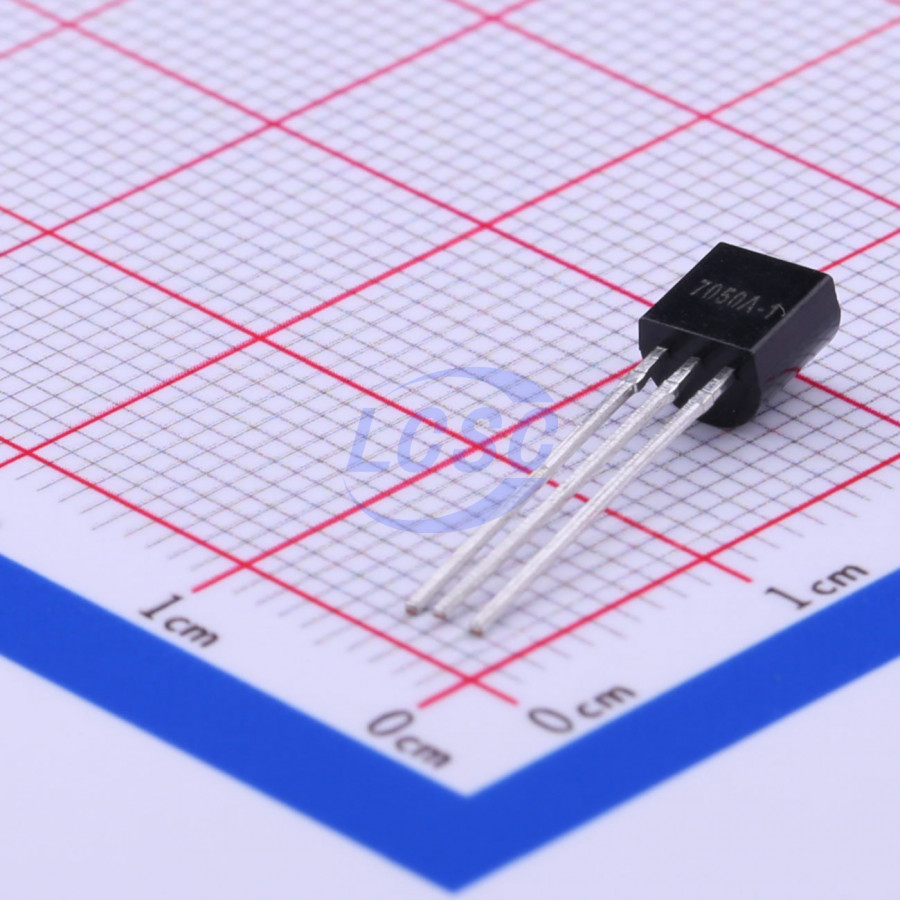

HX7050
Supervisor Open Drain TO-92-3
Low Voltage Detector
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX7050
- Store part #
- C296191
- Package / case
- TO-92-3
- Category
- Supervisors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,480 in stock
#C296191
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.53 | ₹75.30 |
| 100+ | ₹5.98 | ₹598.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 1,000+ | ₹4.63 | ₹4,630.00 |
| 5,000+ | ₹4.17 | ₹20,850.00 |
| 10,000+ | ₹3.93 | ₹39,300.00 |
10 × ₹7.53
₹75.30
excl. GST
₹88.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
HX7050
₹75.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1.5V~12V
- ChipType
- Voltage Detector
- Threshold Voltage
- 5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.106 g
Overview
The HX70XX series is a three-terminal low-voltage detector implemented in CMOS technology. This series can detect fixed voltages ranging from 2.2V to 7V, and consists of four functional blocks: a high-accuracy, low-power reference voltage source, a comparator, a hysteresis circuit, and an output driver. CMOS technology ensures low power consumption. Although the detector is primarily designed for fixed-voltage detection, it can also detect user-specified threshold voltages through external components (NMOS open-drain type only).
Applications
- Battery detector, level selector
- Non-volatile RAM signal storage protector
- Power failure detector
- Battery backup storage
- Microprocessor reset
Key features
- Low power consumption, typical: 2.0μA
- Built-in hysteresis
- Wide operating voltage range: 1.5V~12V
- High-accuracy voltage detection: ±3%
- Low temperature drift detection voltage: typical ±50ppm/°C
- Compact packages: SOT89-3, TO92, SOT23-3
