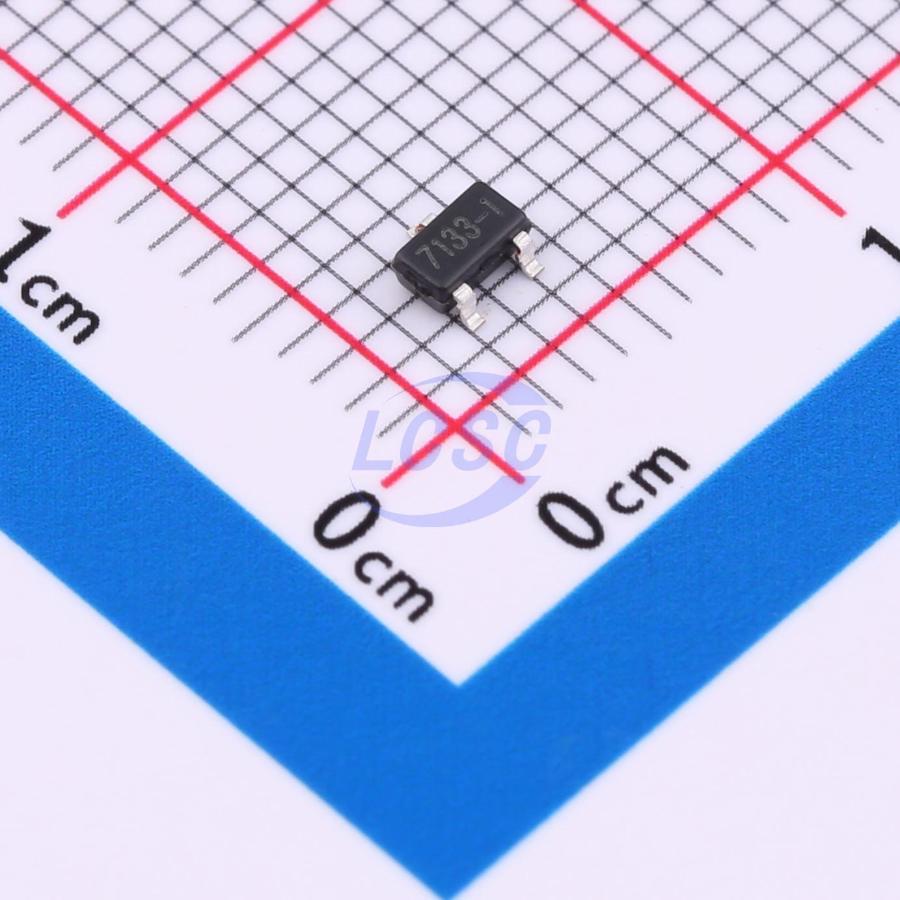

HX7133-1DBZRG
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3.3V 100mA SOT-23-3
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX7133-1DBZRG
- Store part #
- C22439609
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,340 in stock
#C22439609
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.13 | ₹61.30 |
| 100+ | ₹4.82 | ₹482.00 |
| 300+ | ₹4.17 | ₹1,251.00 |
| 3,000+ | ₹3.66 | ₹10,980.00 |
| 6,000+ | ₹3.28 | ₹19,680.00 |
| 9,000+ | ₹3.08 | ₹27,720.00 |
10 × ₹6.13
₹61.30
excl. GST
₹72.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX7133-1DBZRG
₹61.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
HX71xx-1 is a low-dropout linear regulator using CMOS technology. It supports a maximum output current of 100mA and a maximum input voltage of 30V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Audio/video equipment
- Communication devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 30V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT-23-3, TO-92, SOT-89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HX7533-1DBZRG#C5145378HANSCHIP semiconductor · SOT-23-3 | HANSCHIP semiconductor | SOT-23-3 | On request | Price on request | Quote | |
