UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.53
18,64,000 in stock
HANSCHIP semiconductorDatasheet (PDF)

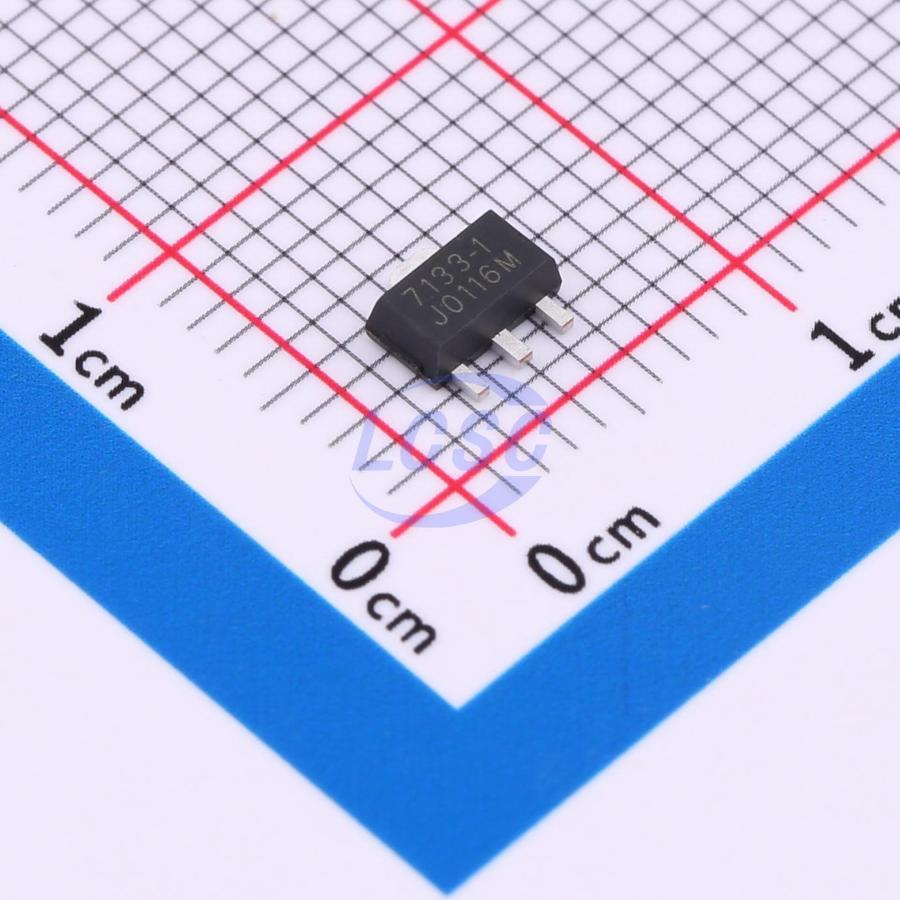

HX7133-1PKRG
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
SOT-89-3ROHS CompliantActive
IC REG LINEAR 3.3V 100mA SOT-89-3
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- HX7133-1PKRG
- Store part #
- C22439608
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C22439608
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.03 | ₹60.30 |
| 100+ | ₹4.78 | ₹478.00 |
| 300+ | ₹4.14 | ₹1,242.00 |
| 1,000+ | ₹3.66 | ₹3,660.00 |
| 5,000+ | ₹3.29 | ₹16,450.00 |
| 10,000+ | ₹3.10 | ₹31,000.00 |
10 × ₹6.03
₹60.30
excl. GST
₹71.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HX7133-1PKRG
₹60.30 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.177 g
Overview
HX71xx-1 is a low-dropout linear regulator using CMOS technology. It supports a maximum output current of 100mA and a maximum input voltage of 30V. Several fixed output voltages are available, ranging from 2.5V to 5.0V. CMOS technology ensures low dropout voltage and low quiescent current characteristics.
Applications
- Battery-powered devices
- Audio/video equipment
- Communication devices
Key features
- Low power consumption
- Low dropout voltage
- Low temperature coefficient
- Maximum input voltage: 30V
- Typical quiescent current: 2uA
- Maximum output current: 100mA
- Output voltage accuracy: ±2%
- Package types: SOT-23-3, TO-92, SOT-89
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX7533-1PKRG#C20625729HANSCHIP semiconductor · SOT-89-3 | HANSCHIP semiconductor | SOT-89-3 | 50 | ₹6.50 · 50 in stock | View |
