hengjiaxingDatasheet (PDF)

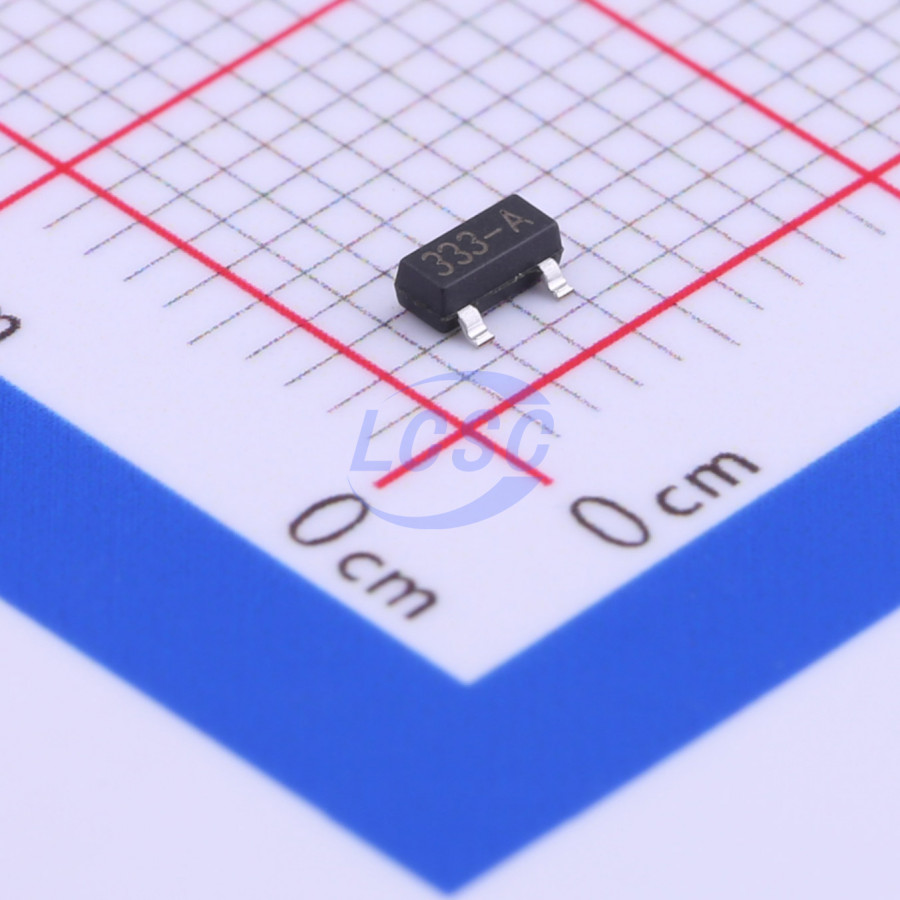

HX7333
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23-3
SOT-23-3ROHS CompliantActive
IC REG LINEAR 3.3V 250mA SOT-23-3
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX7333
- Store part #
- C296168
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C296168
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.97 | ₹59.70 |
| 100+ | ₹4.72 | ₹472.00 |
| 300+ | ₹4.10 | ₹1,230.00 |
| 3,000+ | ₹3.63 | ₹10,890.00 |
| 6,000+ | ₹3.25 | ₹19,500.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹5.97
₹59.70
excl. GST
₹70.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX7333
₹59.70 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 12V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The HX73XX series is a positive-voltage LDO regulator developed using CMOS technology, featuring high output voltage accuracy and ultra-low quiescent current. Thanks to the built-in low on-resistance transistor, the dropout voltage is extremely low, while also offering high input voltage tolerance — with a maximum operating voltage of 12V — making it well-suited for applications requiring higher voltage ratings.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±3% accuracy
- Ultra-low quiescent current: 3μA typical
- Low output voltage temperature drift: 50 ppm/℃ typical
- High input voltage tolerance: regulated output maintained up to 12V
- Package types: TO-92, SOT89-3, SOT23-3
