hengjiaxingDatasheet (PDF)

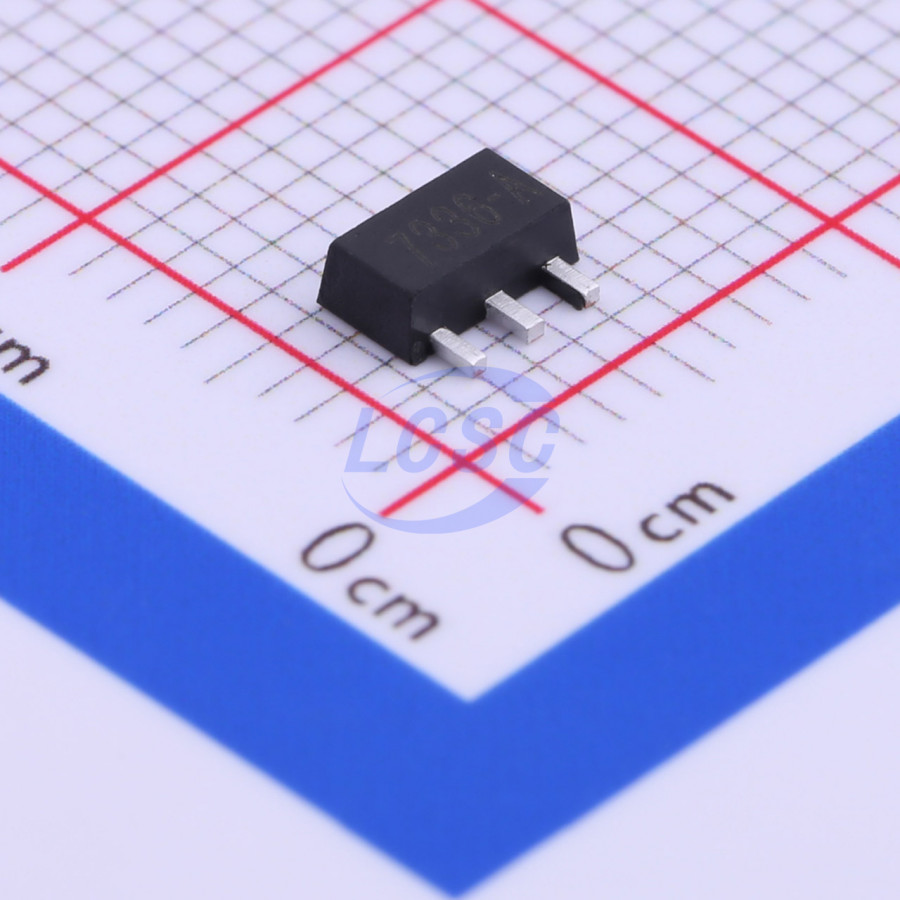

HX7336
Linear Voltage Regulator IC Positive Fixed 1 Output SOT-89
SOT-89ROHS CompliantSold out at source
IC REG LINEAR 3.6V SOT-89
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX7336
- Store part #
- C296163
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C296163
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.48 | ₹54.80 |
| 100+ | ₹4.41 | ₹441.00 |
| 300+ | ₹3.86 | ₹1,158.00 |
| 1,000+ | ₹3.12 | ₹3,120.00 |
| 5,000+ | ₹2.79 | ₹13,950.00 |
| 10,000+ | ₹2.63 | ₹26,300.00 |
10 × ₹5.48
₹54.80
excl. GST
₹64.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
HX7336
₹54.80 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.138 g
Overview
The HX73XX series is a positive-voltage LDO regulator developed using CMOS technology, featuring high output voltage accuracy and ultra-low quiescent current. Due to the integrated low on-resistance transistor, the dropout voltage is low, while the device also supports high input voltage capability, with a maximum operating voltage of 12V, making it suitable for applications requiring higher voltage tolerance.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±3% accuracy
- Ultra-low quiescent current: 3μA typical
- Low output voltage temperature drift: 50ppm/℃ typical
- High input voltage tolerance: regulated output up to 12V input
- Package types: TO-92, SOT89-3, SOT23-3
