hengjiaxingDatasheet (PDF)

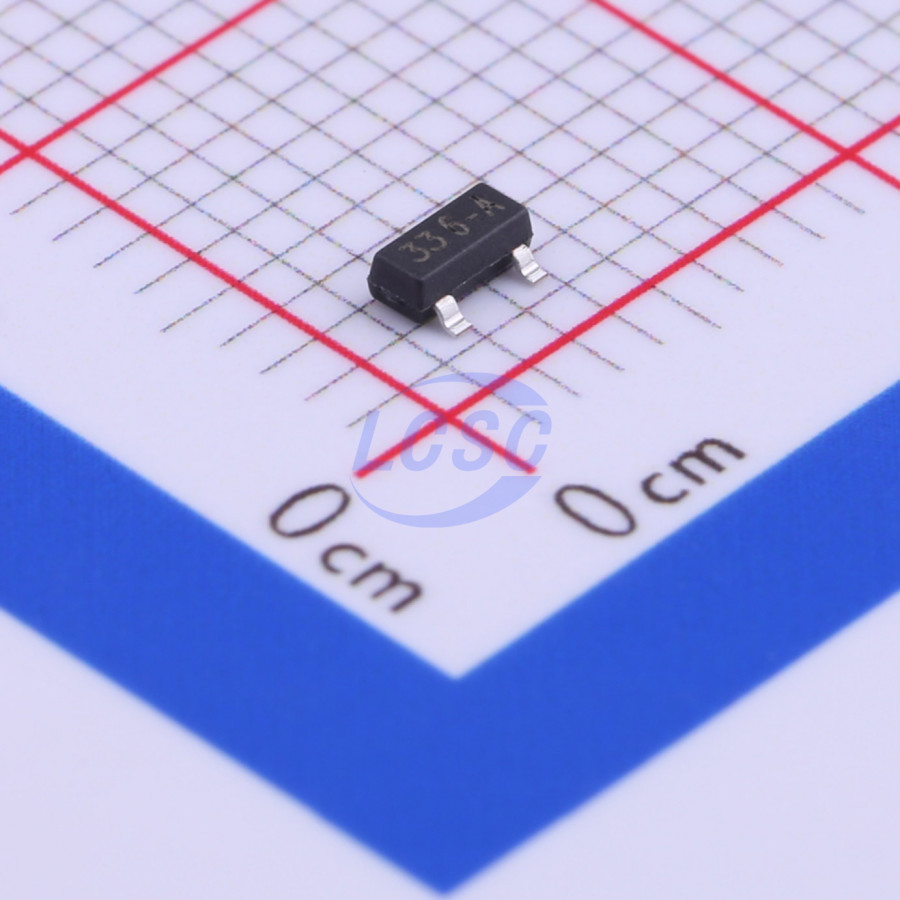

HX7336
Linear Voltage Regulator IC Positive Fixed 1 Output SOT-23
SOT-23ROHS CompliantActive
IC REG LINEAR 3.6V SOT-23
- Manufacturer
- hengjiaxing
- Manufacturer part #
- HX7336
- Store part #
- C296165
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C296165
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.85 | ₹68.50 |
| 100+ | ₹5.49 | ₹549.00 |
| 300+ | ₹4.82 | ₹1,446.00 |
| 3,000+ | ₹3.93 | ₹11,790.00 |
| 6,000+ | ₹3.52 | ₹21,120.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
10 × ₹6.85
₹68.50
excl. GST
₹80.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX7336
₹68.50 for 10 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+70℃@(Ta)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 12V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The HX73XX series is a positive-voltage LDO regulator developed using CMOS technology, featuring high output voltage accuracy and ultra-low quiescent current. Due to the integrated low on-resistance transistor, the dropout voltage is low, while the device also supports high input voltage capability, with a maximum operating voltage of 12V, making it suitable for applications requiring higher voltage tolerance.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±3% accuracy
- Ultra-low quiescent current: 3μA typical
- Low output voltage temperature drift: 50ppm/℃ typical
- High input voltage tolerance: regulated output up to 12V input
- Package types: TO-92, SOT89-3, SOT23-3
